Watlow EZ-ZONE

®

RMS Module

15

Chapter 2 Install and Wire

(2.03 in)

51.56 mm

(.66 in)

16.76 mm

(2.31 in)

58.67 mm

(.69 in)

17.53 mm

(2.38 in)

60.45 mm

(1.41 in)

35.81 mm

(1.38 in)

35.05 mm

(1.29 in)

32.77 mm

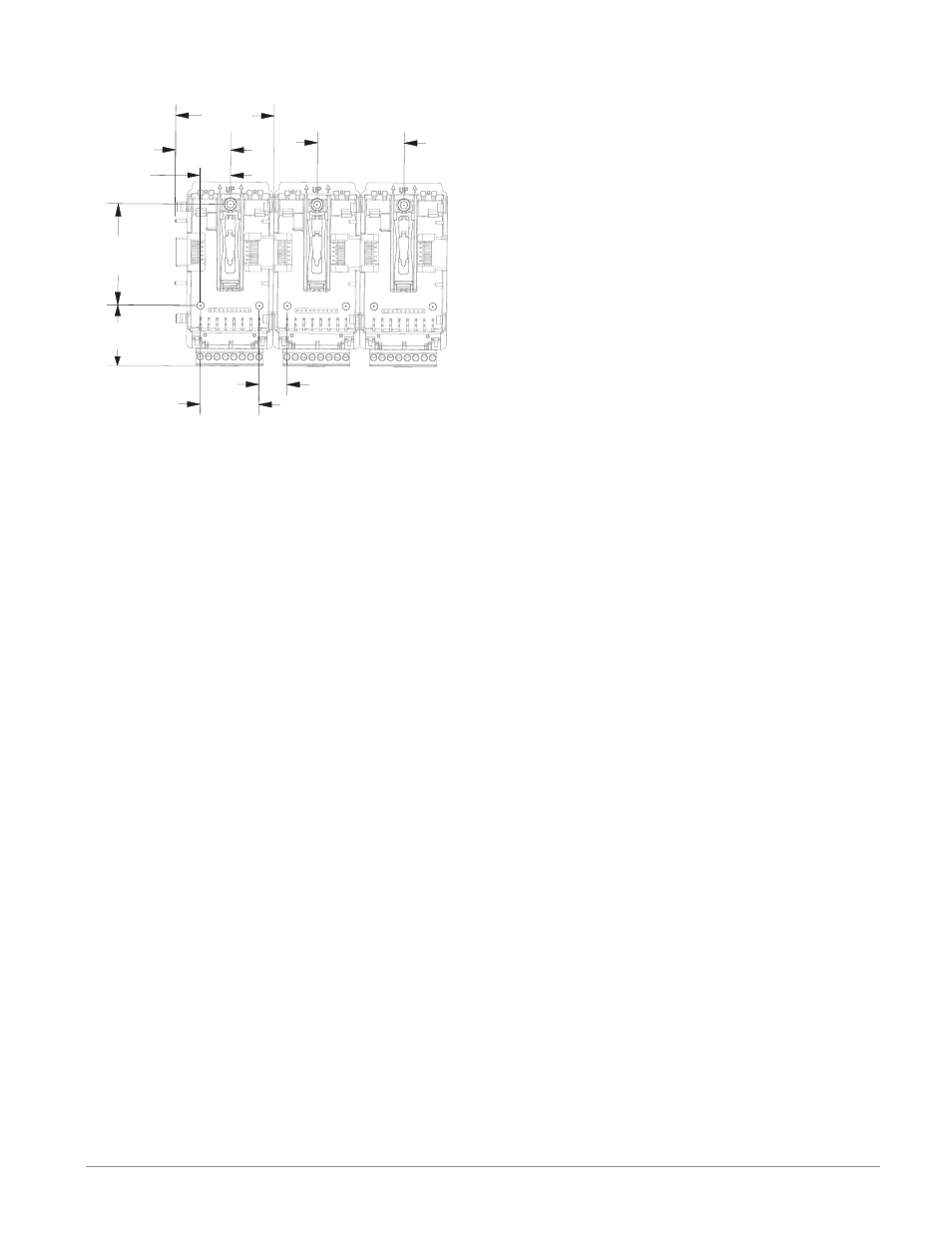

Chassis Mount Front View (Module Removed) - Screw Connection Pattern

Recommended chassis mount hardware:
1. #8 screw, 3/4" long
2. Torque to 10 -15 lb-in
3. No washers of any kind

The view above is representative of the modular backplane without the module.
