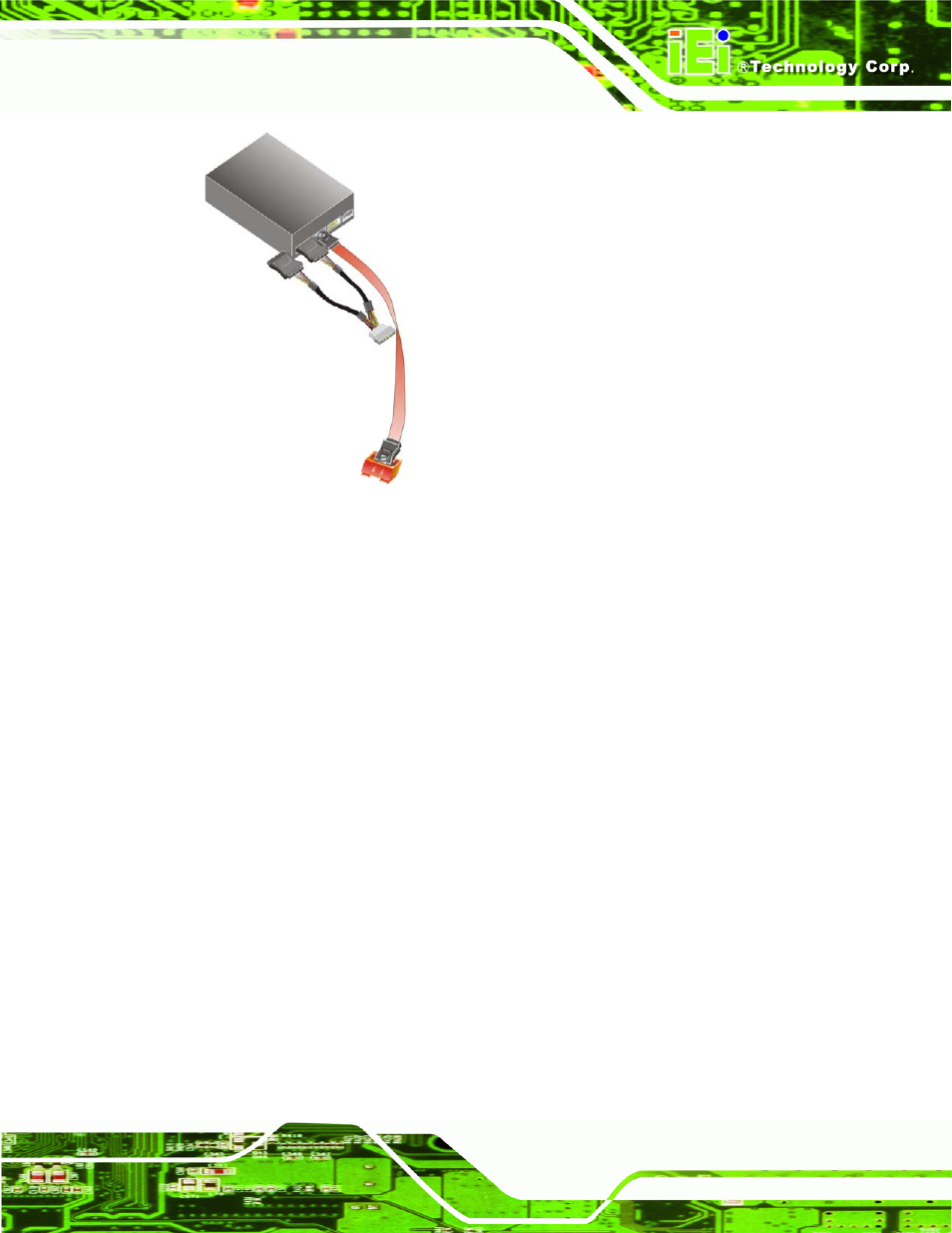

Figure 4-13: SATA Power Drive Connection

4.8.3 RS-232 Cable Connection

The dual RS-232 cable consists of two connectors attached to two independent cables.

Each cable is then attached to a D-sub 9-pin male connector. To install the dual RS-232

cable, please follow the steps below.

Step 1:

Locate the connectors. The locations of the RS-232 connectors are shown in

Chapter 3.

Step 2:

Insert the cable connectors. Insert one connector into each serial port box

headers. See Figure 5-13. A key on the front of the cable connectors ensures

the connector can only be installed in one direction.
