WAFER-945GSELVDS2

Page 15

3.3 Internal Peripheral Connectors

Internal peripheral connectors are found on the motherboard and are only accessible

when the motherboard is outside of the chassis. This section has complete descriptions of

all the internal, peripheral connectors on the WAFER-945GSELVDS2.

3.3.1 ATX Power Connector

CN Label:

ATXPWR1

CN Type:

4-pin AT power connector (1x4)

CN Location:

See Figure 3-2

CN Pinouts:

See Table 3-3

The 4-pin ATX power connector is connected to an ATX power supply.

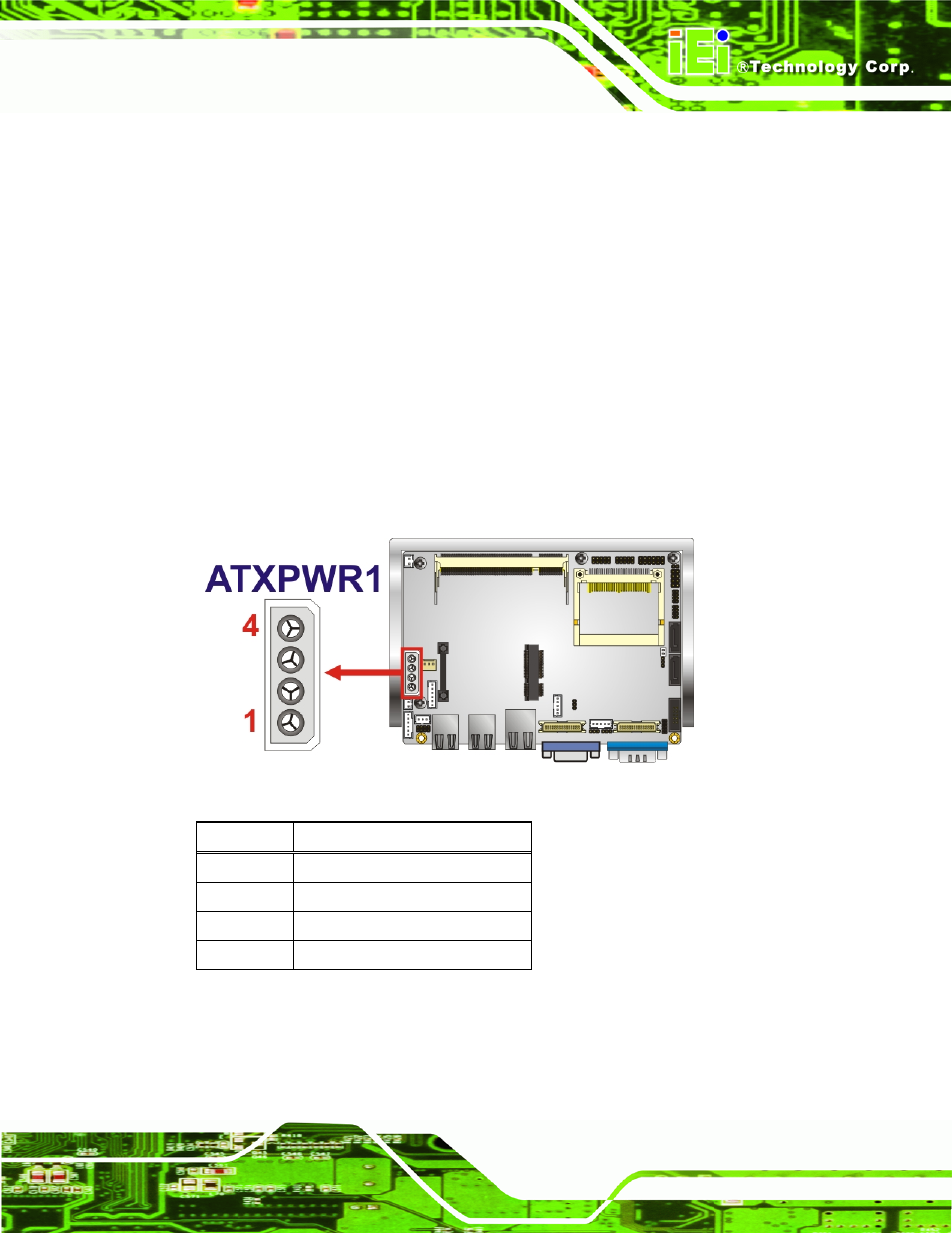

Figure 3-2: ATX Power Connector Location

Pin Description

1 +12V

2 GND

3 GND

4 +5V

Table 3-3: ATX Power Connector Pinouts

3.3.2 ATX Power Control Connector

CN Label:

ATXCTL1
