WAFER-945GSELVDS2
Page 2
1.1 Introduction

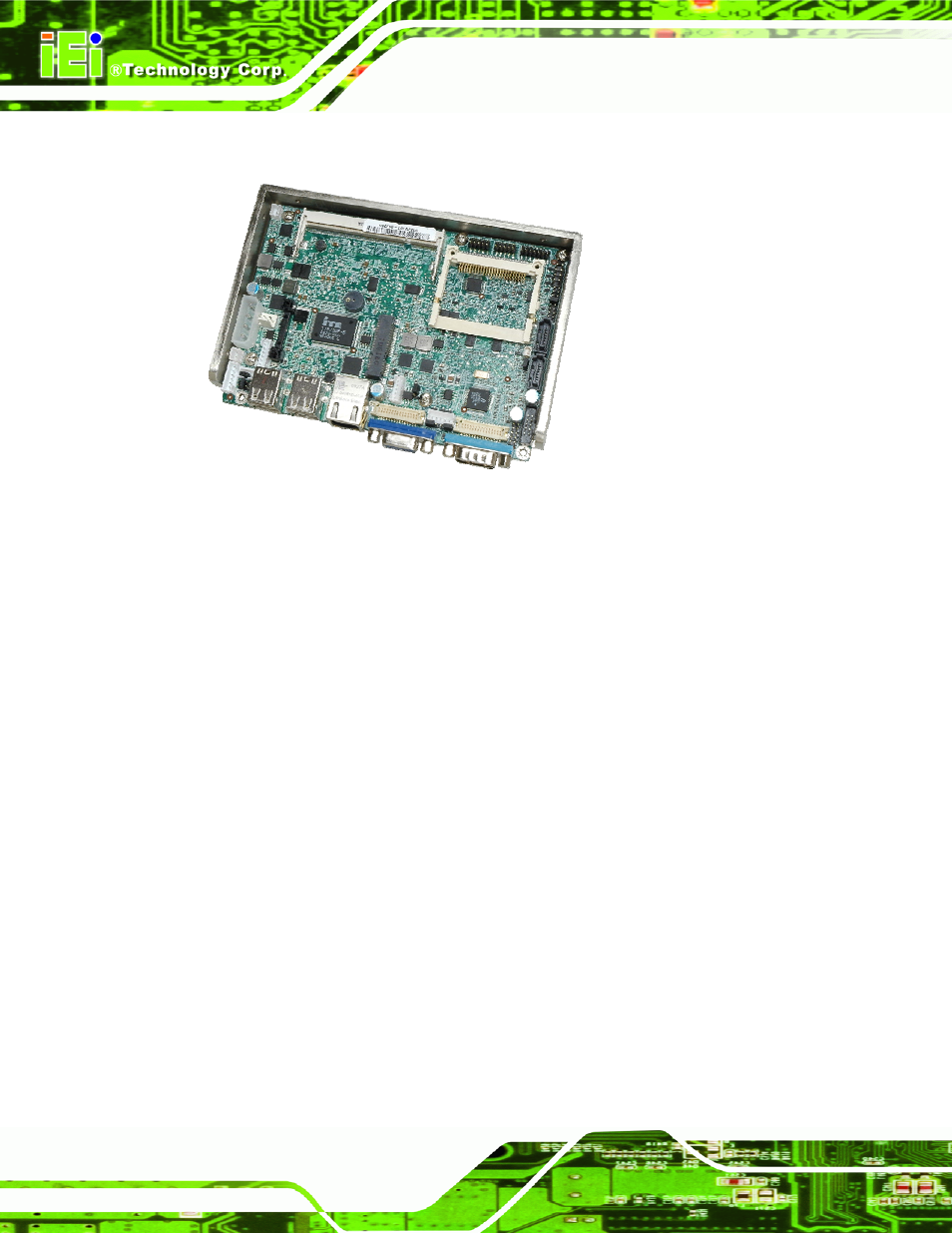

Figure 1-1: WAFER-945GSELVDS2
The WAFER-945GSELVDS2 is a 3.5" motherboard with a 1.6 GHz Intel® ATOM™ N270
processor with 512 KB L2 cache. Also supports one supports one 400 MHz or 533 MHz
DDR2 SO-DIMM up to 2.0 GB.
The WAFER-945GSELVDS2 has 18-bit and 24-bit dual-channel LVDS connectors, and a
single VGA video output.
External connectors include USB and Gigabit Ethernet connectors. Expansion options
include SATA slots, a PCIe Mini card slot, serial port connectors, CompactFlash® card
slot and audio connector.
1.2 Overview Photo
The WAFER-945GSELVDS2 has a wide variety of peripheral interface connectors. Figure
1-2 is a labeled photo of the peripheral interface connectors on the
WAFER-945GSELVDS2.
