WAFER-945GSELVDS2
Page 21

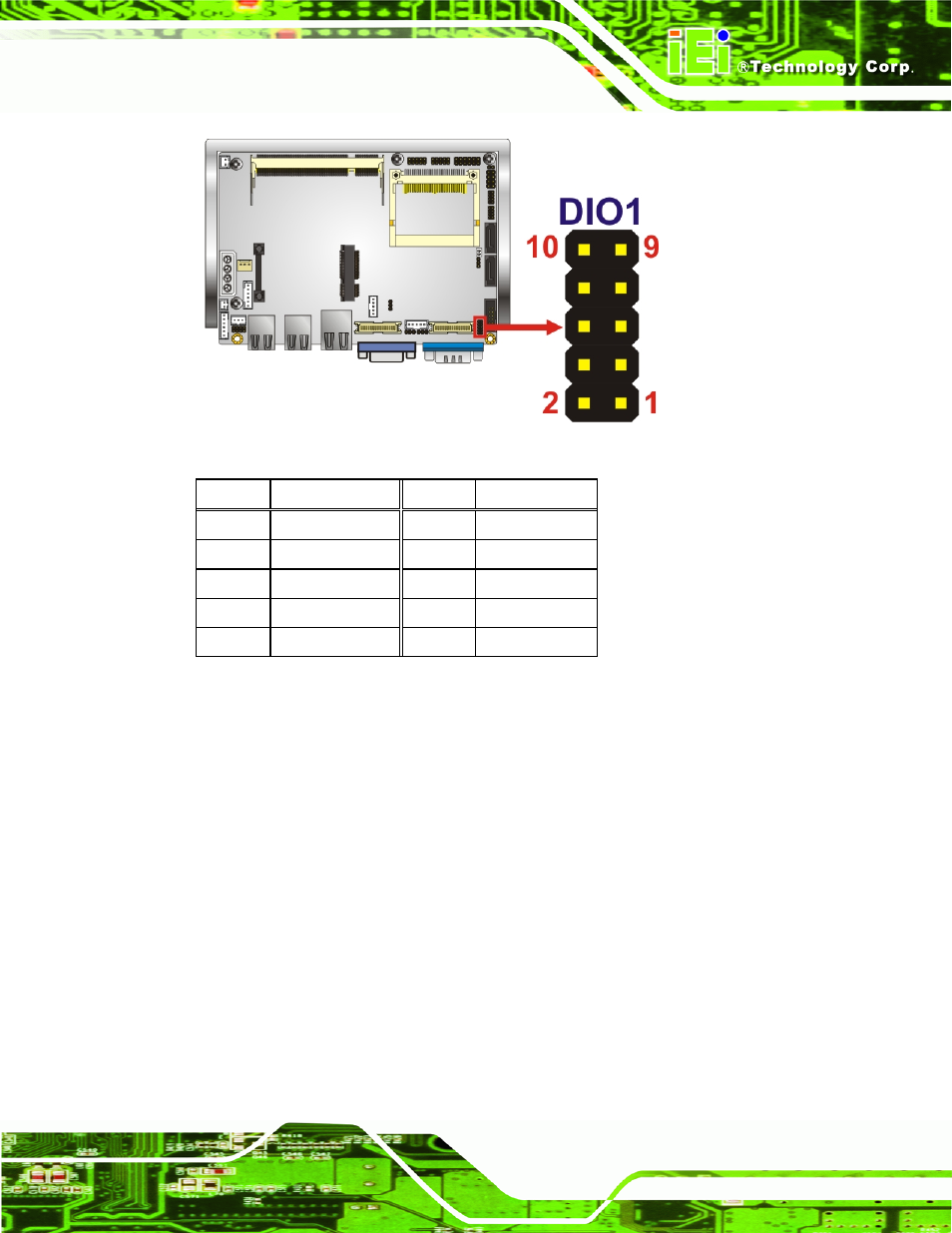

Figure 3-7: Digital I/O Connector Location
Pin Description Pin Description
1 GND 2 VCC
3 Output 3 4 Output 2
5 Output 1 6 Output 0
7 Input 3 8 Input 2
9 Input 1 10 Input 0
Table 3-8: Digital I/O Connector Location
3.3.7 CPU Fan Connector
CN Label: CPU_FAN1
CN Type: 3-pin header
CN Location: See Figure 3-8
CN Pinouts: See Table 3-9
Connects to a CPU fan.
