WAFER-945GSELVDS2

Page 58

Step 2:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the onboard SATA drive

connector. See Figure 4-12.

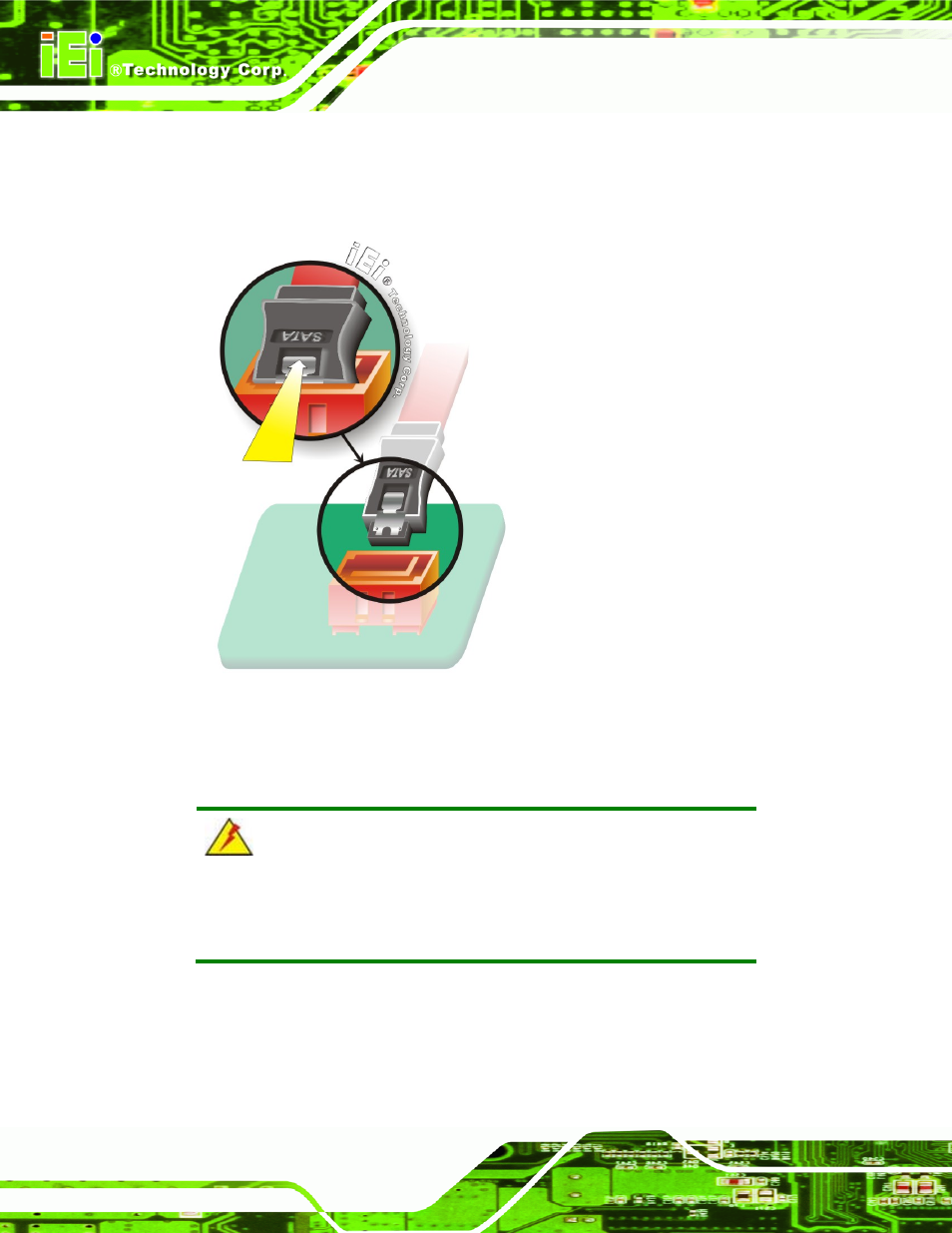

Figure 4-12: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-13.

NOTE:

The SATA power cable described below is an optional item and must

be pre-ordered. The SATA power cable is not shipped with the system.

Step 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See Figure 4-13.

Step 0:
