WAFER-945GSELVDS2

Page 19

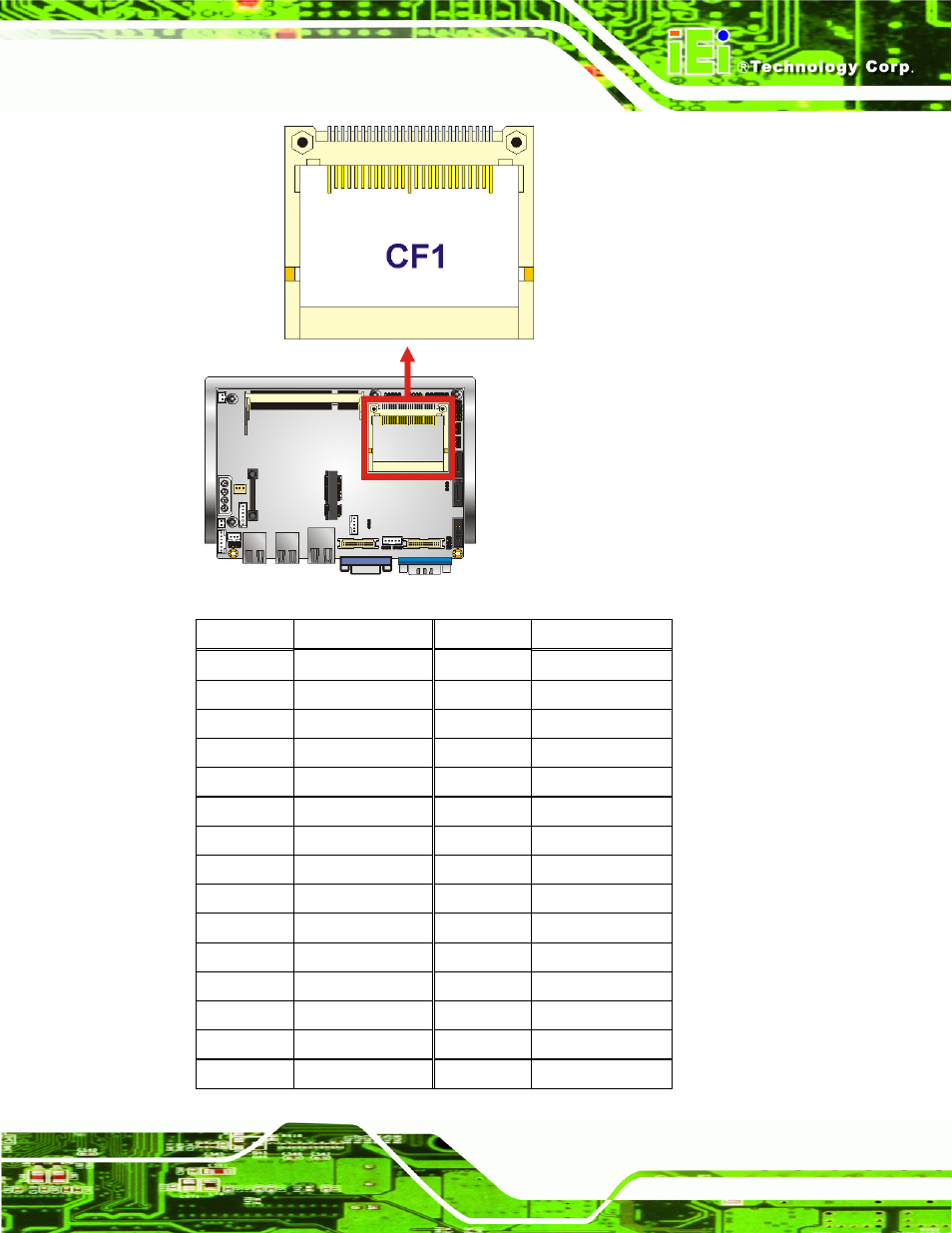

Figure 3-6: CF Card Slot Location

Pin Description

Pin Description

1 GND

26

CD1#

2 D3

27

D11

3 D4

28

D12

4 D5

29

D13

5 D6

30

D14

6 D7

31

D15

7 CE#

32

CE2#

8 A10

33

VS1#

9 OE#

34

IOR#

10 A9

35 IOW#

11 A8

36 WE#

12 A7

37 IRQ

13 VCC

38 VCC

14 A6

39 CSEL#

15 A5

40 VS2#
