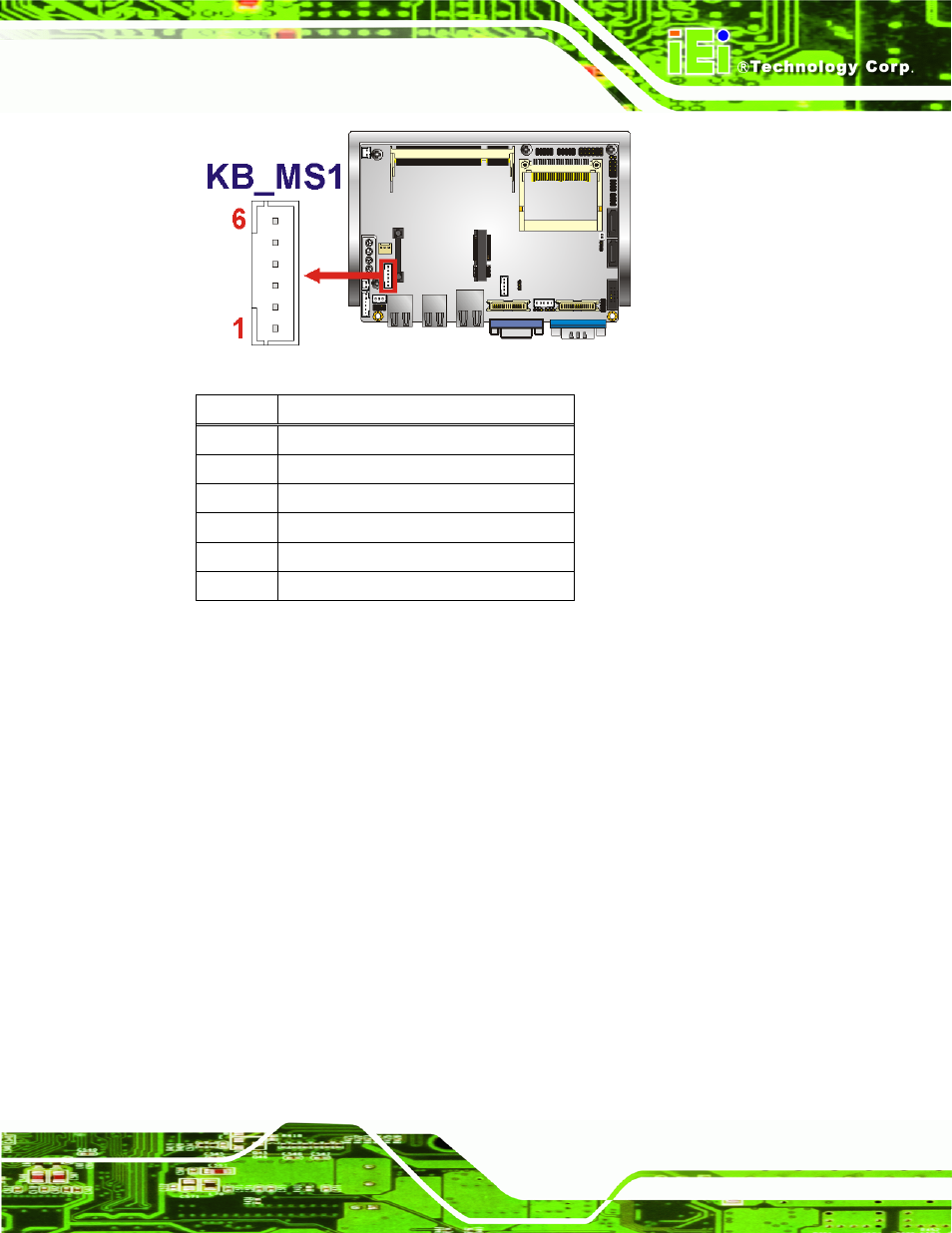

Figure 3-9: Keyboard/Mouse Connector Location

Pin Description

1

VCC (+5 V)

2 MS

DATA

3 MS

CLK

4 KB

DATA

5 KB

CLK

6 GROUND

Table 3-10: Keyboard/Mouse Connector Pinouts

3.3.9 LED Connector

CN Label:

LED_C1

CN Type:

6-pin wafer (1x6)

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11

The LED connector connects to an HDD indicator LED and a power LED on the system

chassis to inform the user about HDD activity and the power on/off status of the system.
