WAFER-945GSELVDS2

Page 29

Pin Description

5 BACKLIGHT

Enable

Table 3-15: Backlight Connector Pinouts

3.3.14 PCIe Mini Card Slot

CN Label:

CN4

CN Type:

52-pin Mini PCIe Card Slot

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-16

The PCIe mini card slot enables a PCIe mini card expansion module to be connected to

the board. Cards supported include among others wireless LAN (WLAN) cards.

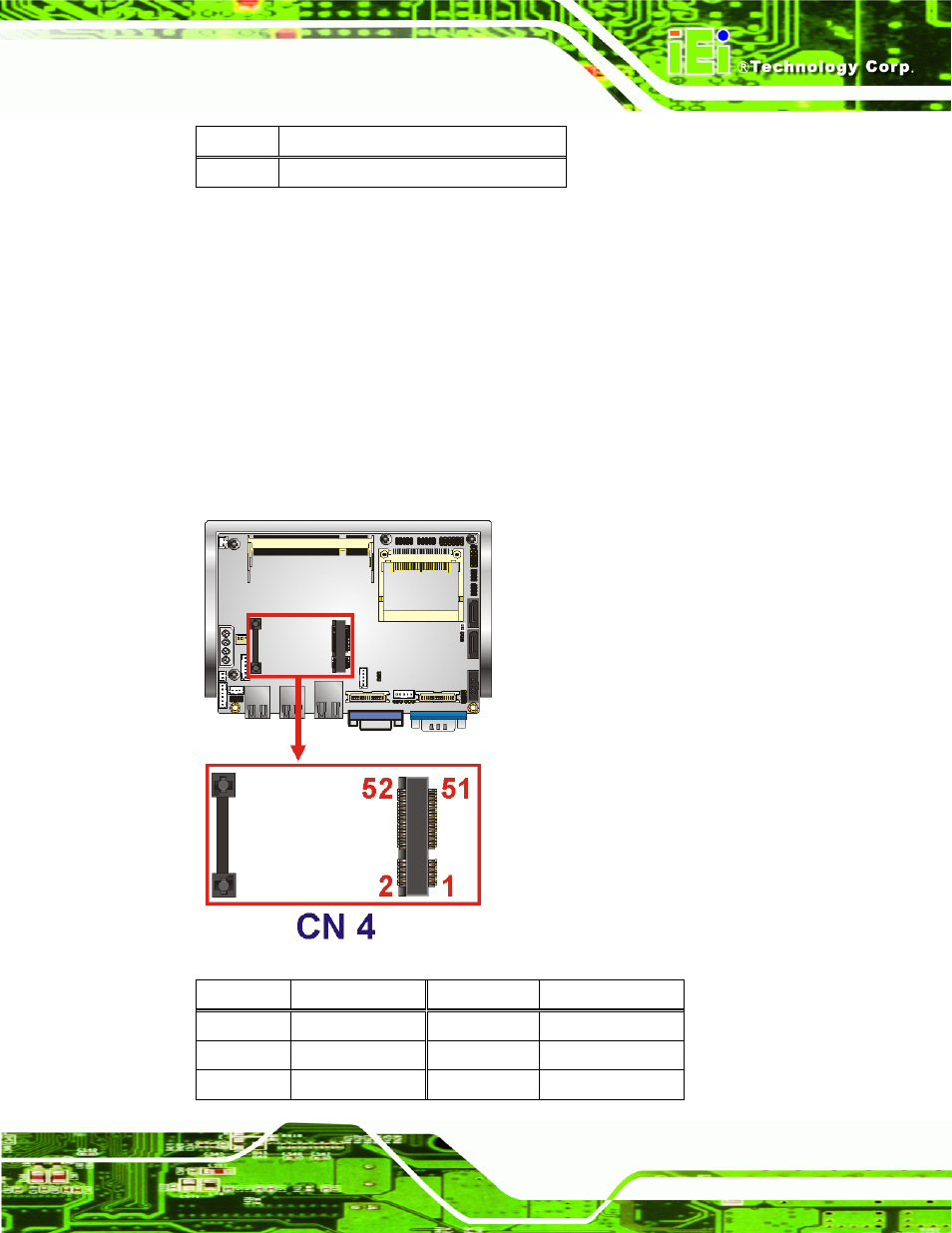

Figure 3-15: PCIe Mini Card Slot Location

Pin Description

Pin

Description

1 PCIE_WAKE#

2

VCC3

3 N/C

4

GND

5 N/C

6

1.5V
