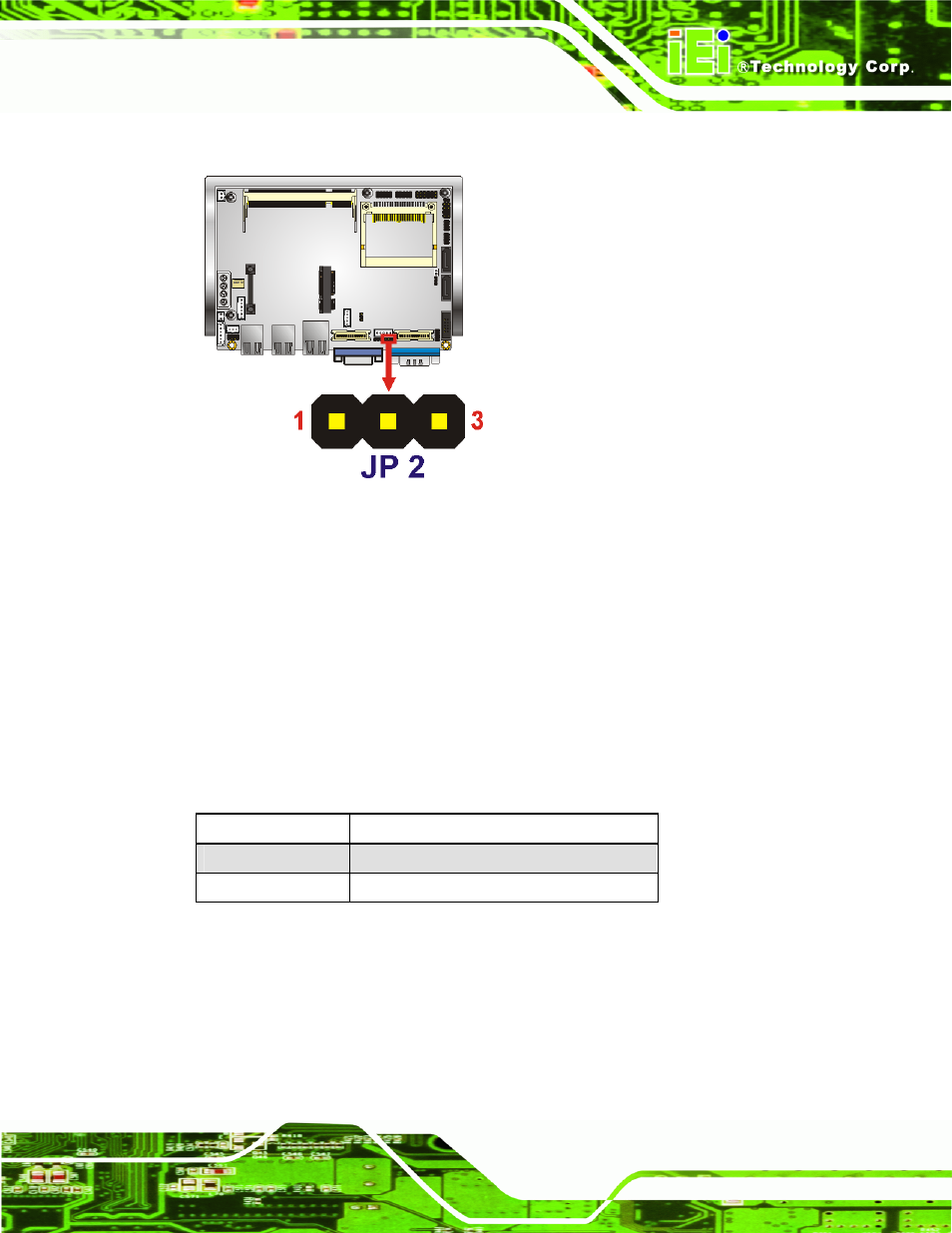

The location of the audio power source selection jumper is shown below.
Figure 4-4: Audio Power Source
4.6.3 CF Card Setup
Jumper Label: JCF1
Jumper Type: 2-pin header
Jumper Settings: See Table 4-4
Jumper Location: See Figure 4-5
The CF Card Setup jumper sets the CF Type I card or CF Type II cards as either the slave
device or the master device. CF Card Setup jumper settings are shown in Table 4-4.
Pin Description
Open Slave
Short Master
Table 4-4: CF Card Setup Jumper Settings
The CF Card Setup jumper location is shown in Figure 4-5.
