WAFER-945GSELVDS2
Page 53

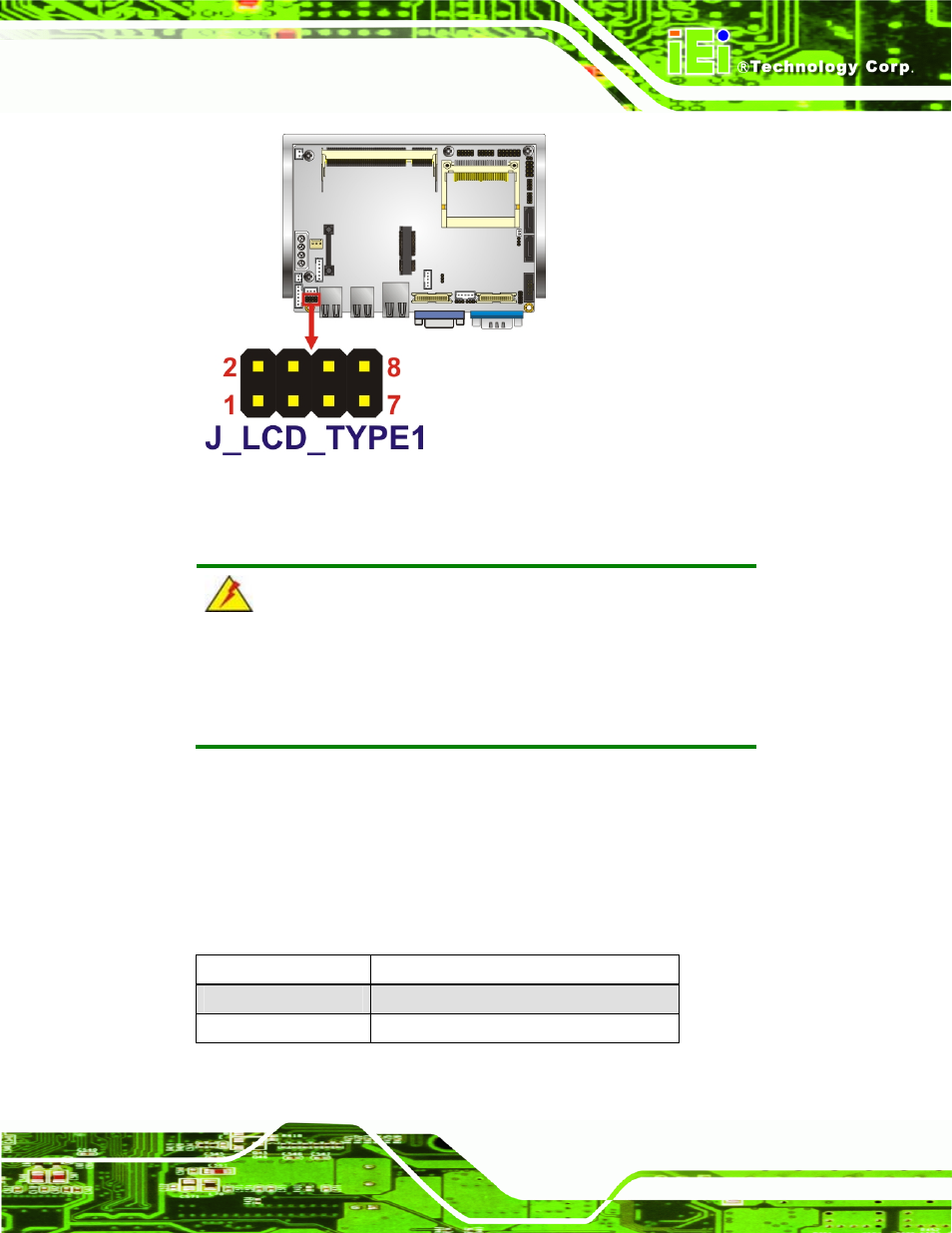

Figure 4-8:LVDS Panel Resolution Jumper Pinout Locations
4.6.7 LVDS1 Voltage Selection
WARNING:
Permanent damage to the screen and WAFER-945GSELVDS2 may
occur if the wrong voltage is selected with this jumper. Please refer to
the user guide that came with the monitor to select the correct voltage.
Jumper Label: J_VLVDS1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-9
Jumper Location: See Figure 4-9
Sets the voltage provided to the monitor by LVDS1.
Pin Description
1-2 +3.3V LVDS
2-3 +5V LVDS
Table 4-9: LVDS Voltage Selection Jumper Settings
