WAFER-945GSELVDS2
Page 35

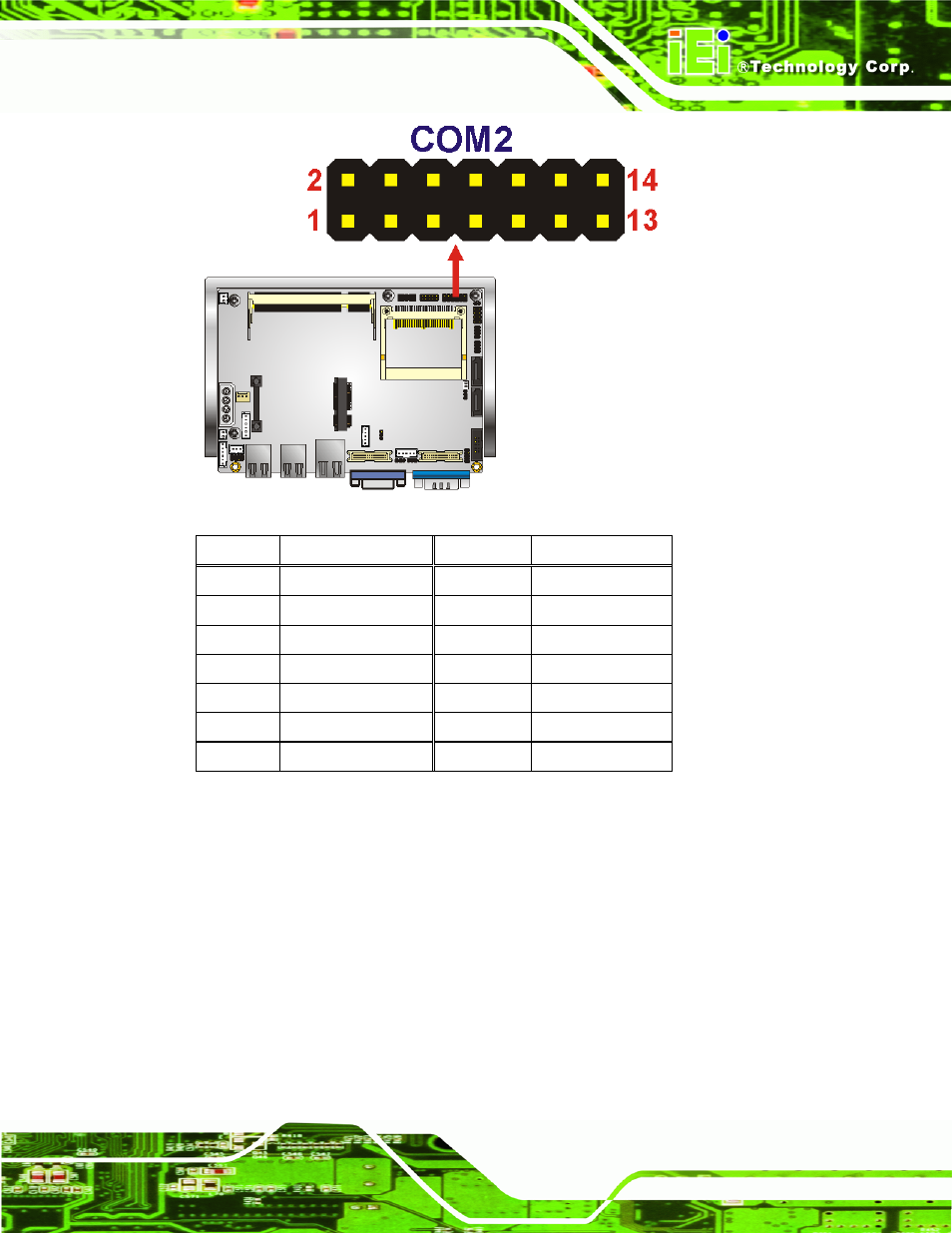

Figure 3-20: RS-232/422/485 Serial Port Connector Location
Pin Description Pin Description
1 DCD# 2 DSR#
3 RXD 4 RTS#
5 TXD 6 CTS#
7 DTR# 8 RI#
9 GND 10 N/C
11 TXD485+ 12 TXD485-
13 RXD485+ 14 RXD485-
Table 3-21: RS-232/RS-485 Serial Port Connector Pinouts
3.3.20 USB Connector
CN Label: USB01
CN Type: 8-pin header (2x4)
CN Location: See Figure 3-21
CN Pinouts: See Table 3-22
