WAFER-945GSELVDS2
Page 44
4.3 Unpacking
When the WAFER-945GSELVDS2 is unpacked, please check all the unpacking list items
listed in Chapter 3 are indeed present. If any of the unpacking list items are not available
please contact the WAFER-945GSELVDS2 vendor reseller/vendor where the
WAFER-945GSELVDS2 was purchased or contact an IEI sales representative.
4.4 SO-DIMM Installation
WARNING:
Using incorrectly specified SO-DIMM may cause permanently damage
the WAFER-945GSELVDS2. Please make sure the purchased
SO-DIMM complies with the memory specifications of the
WAFER-945GSELVDS2. SO-DIMM specifications compliant with the
WAFER-945GSELVDS2 are listed in Chapter 2.
To install a SO-DIMM into a SO-DIMM socket, please follow the steps below and refer to
Figure 4-1.

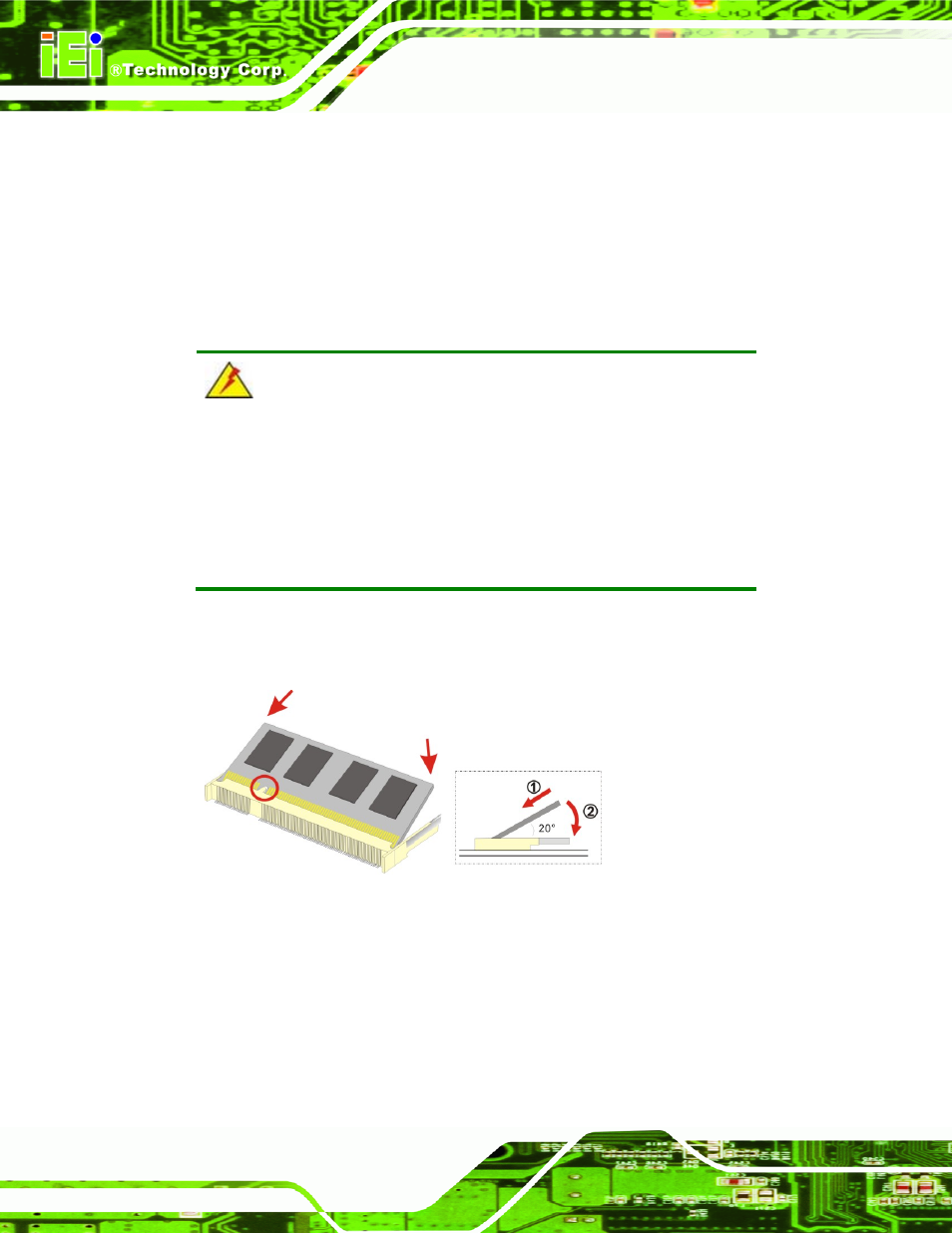

Figure 4-1: SO-DIMM Installation
Step 1: Locate the SO-DIMM socket. Place the WAFER-945GSELVDS2 on an
anti-static pad with the solder side facing up.
Step 2: Align the SO-DIMM with the socket. The SO-DIMM must be oriented in such a
way that the notch in the middle of the SO-DIMM must be aligned with the
plastic bridge in the socket.
