WAFER-945GSELVDS2

Page 36

The 2x4 USB pin connectors each provide connectivity to two USB 1.1 or two USB 2.0

ports. Each USB connector can support two USB devices. Additional external USB ports

are found on the rear panel. The USB ports are used for I/O bus expansion.

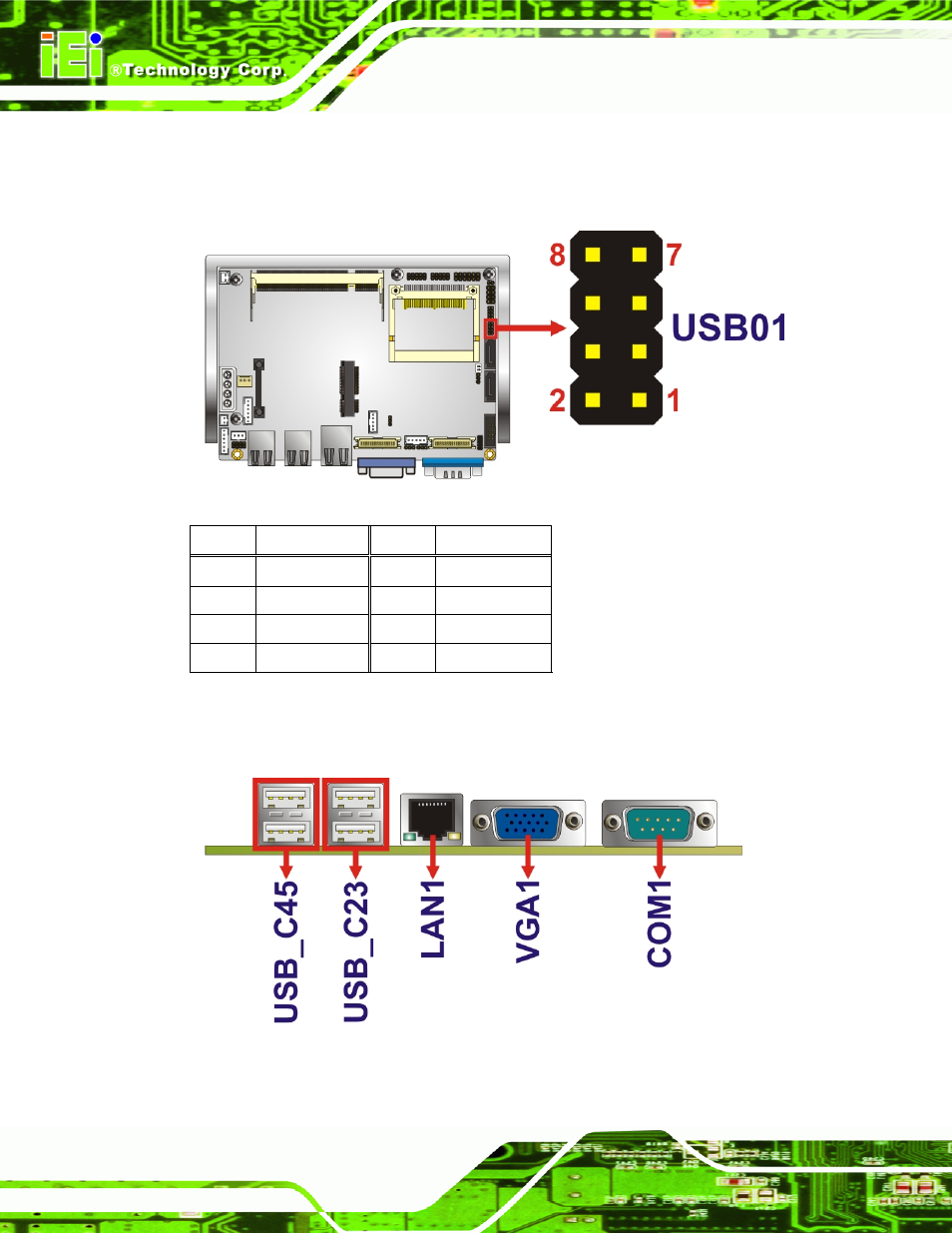

Figure 3-21: USB Connector Pinout Locations

Pin Description

1 VCC

2 GND

3 DATA-

4 DATA+

5 DATA+ 6 DATA-

7 GND

8 VCC

Table 3-22: USB Port Connector Pinouts

3.4 External Peripheral Interface Connector Panel

Figure 3-22: WAFER-945GSELVDS2 External Peripheral Interface Connector
