WAFER-945GSELVDS2

Page 22

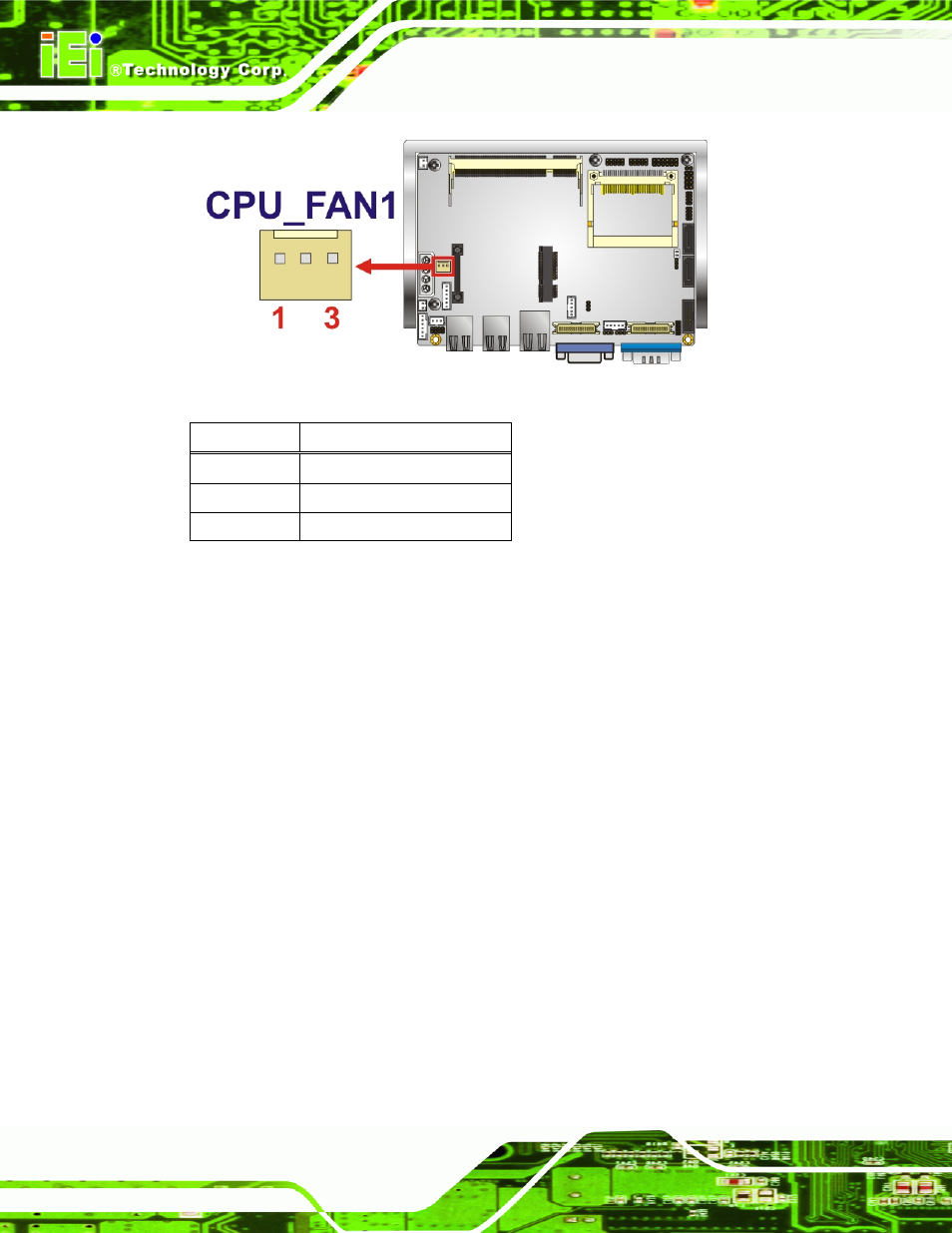

Figure 3-8: CPU Fan Connector Location

Pin Description

1 GND

2 +12V

3

Fan Speed Detect

Table 3-9: CPU Fan Connector Pinouts

3.3.8 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin header (1x6)

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2

Y-cable to add keyboard and mouse functionality to the system.
