3.3.11 LVDS1 Inverter Connector

CN Label:

INVERTER1

CN Type:

5-pin wafer (1x5)

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-13

Provides power to an LVDS monitor.

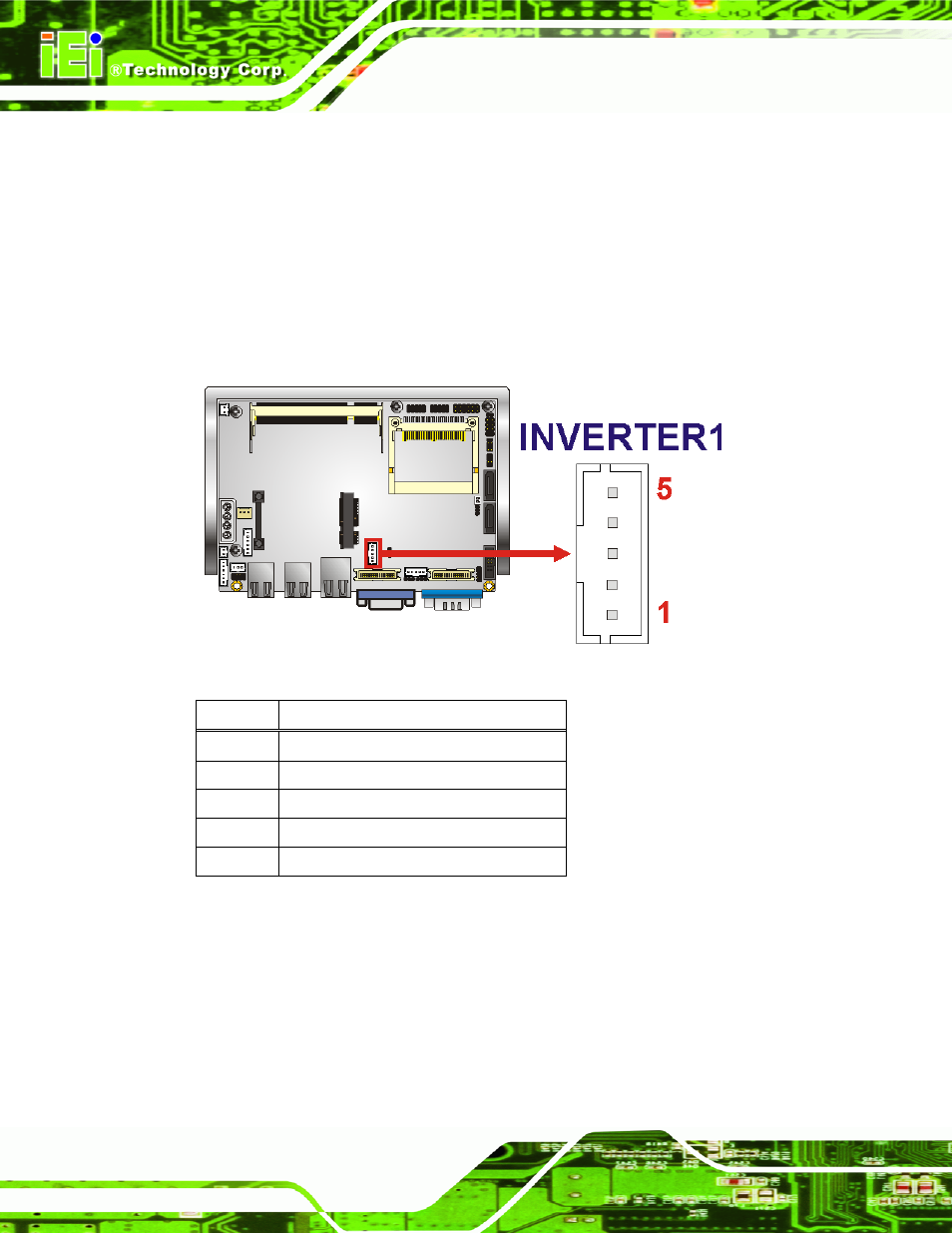

Figure 3-12: Backlight Connector Pinout Locations

Pin Description

1

LCD Backlight Control

2 GROUND

3 +12V

4 GROUND

5 BACKLIGHT

Enable

Table 3-13: Backlight Connector Pinouts

3.3.12 LVDS2 LCD Connector

CN Label:

LVDS2

CN Type:

30-pin crimp (2x15)

CN Location:

See Figure 3-13
