WAFER-945GSELVDS2

Page 32

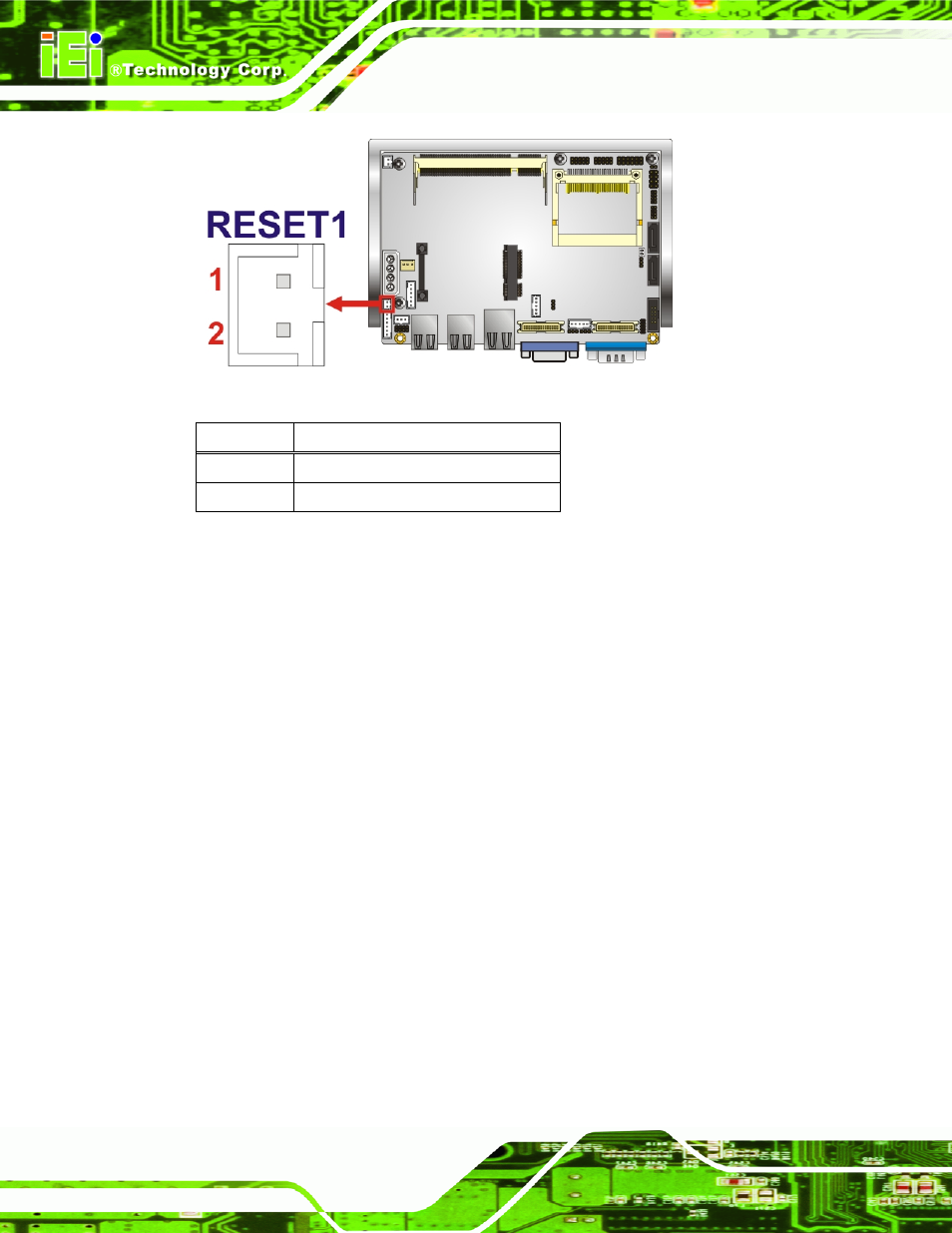

Figure 3-17: Reset Button Connector Locations

Pin Description

1 Reset

Switch

2 GND

Table 3-18: Reset Button Connector Pinouts

3.3.17 SATA Drive Connectors

CN Label:

SATA1, SATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See Figure 3-18

CN Pinouts:

See Table 3-19

The SATA drive connectors can be connected to SATA drives and support up to 3.0 Gb/s

data transfer rate.
