WAFER-945GSELVDS2

Page 18

CN Label:

BAT1

CN Type:

2-pin wafer (1x2)

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

This is connected to the system battery. The battery provides power to the system clock to

retain the time when power is turned off.

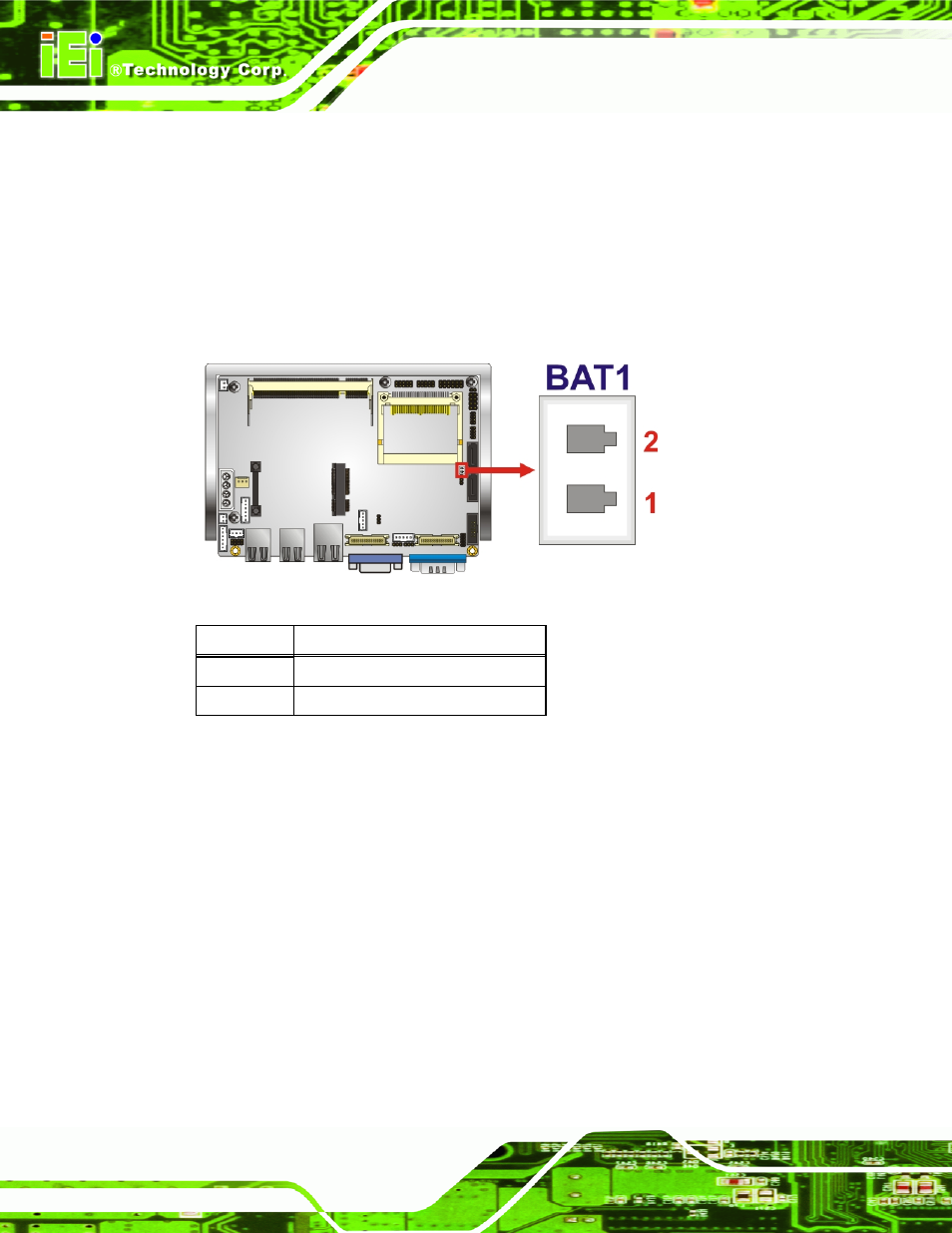

Figure 3-5: Battery Connector Location

Pin Description

1 Battery+

2 Ground

Table 3-6: Battery Connector Pinouts

3.3.5 CompactFlash® Slot

CN Label:

CF1

CN Type:

50-pin header (2x25)

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

Used for installing a CompactFlash® card.
