WAFER-945GSELVDS2

Page 31

Turns the system on and off when the system is set to ATX power mode.

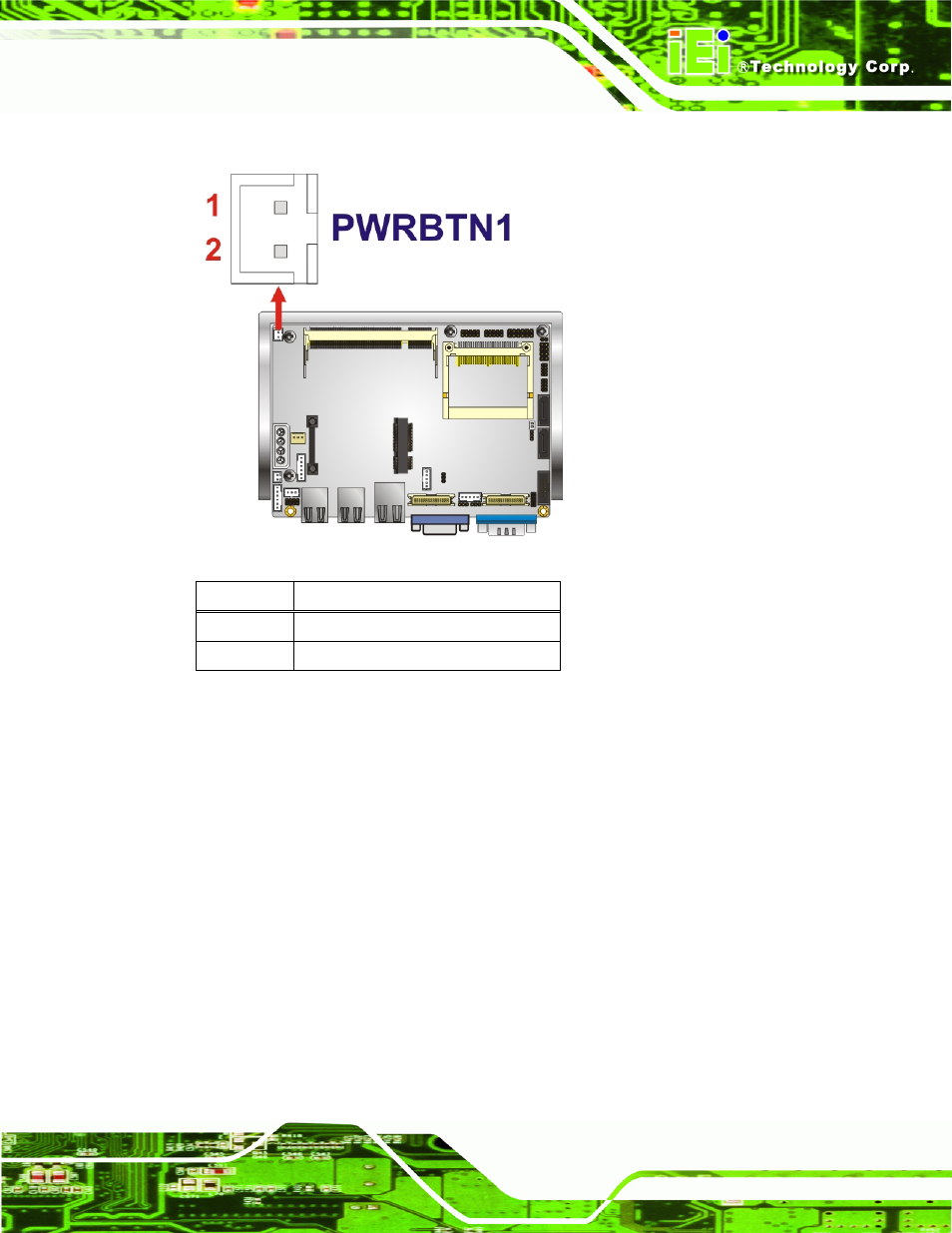

Figure 3-16: Power Button Connector Location

Pin Description

1 Power

Switch

2 GND

Table 3-17: Power Button Connector Pinouts

3.3.16 Reset Button Connector

CN Label:

RESET1

CN Type:

2-pin wafer (1x2)

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-18

Used to reset the system when set to use ATX power.
