WAFER-945GSELVDS2

Page 52

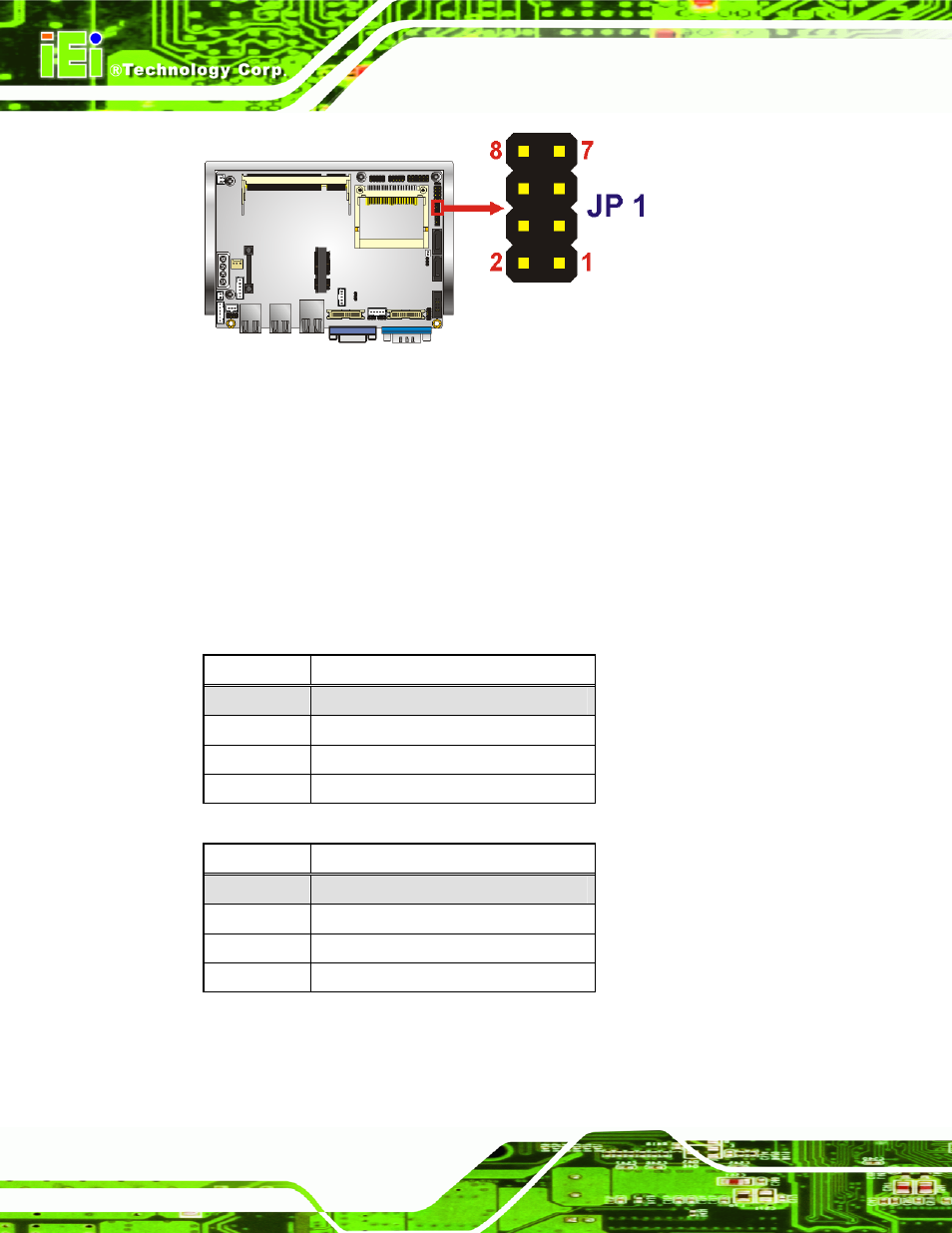

Figure 4-7: COM 2 Function Select Jumper Location

4.6.6 LVDS1 and LVDS2 Panel Resolution Jumper

Jumper Label:

J_LCD_TYPE1

Jumper Type:

8-pin header

Jumper Settings:

See Table 4-7

Jumper Location:

See Figure 4-8

Sets the resolution of both LVDS1 and LVDS2 video channels.

Pin LVDS1

Resolution

Open

800 x 600, 18-bit

1-2

1024 x 768, 18-bit

3-4

1280 x 1024, 36-bit

1-2, 3-4

1400 x 1050, 36-bit

Table 4-7: LVDS1 Panel Resolution

Pin LVDS2

Resolution

Open

1024 x 768, 18-bit

5-6

1024 x 768, 24-bit

7-8

1280 x 1024, 36-bit

5-6, 7-8

1280 x 1024, 48-bit

Table 4-8: LVDS2 Panel Resolution

The LVDS Panel Resolution jumper location. is shown in Figure 4-8.
