IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 68

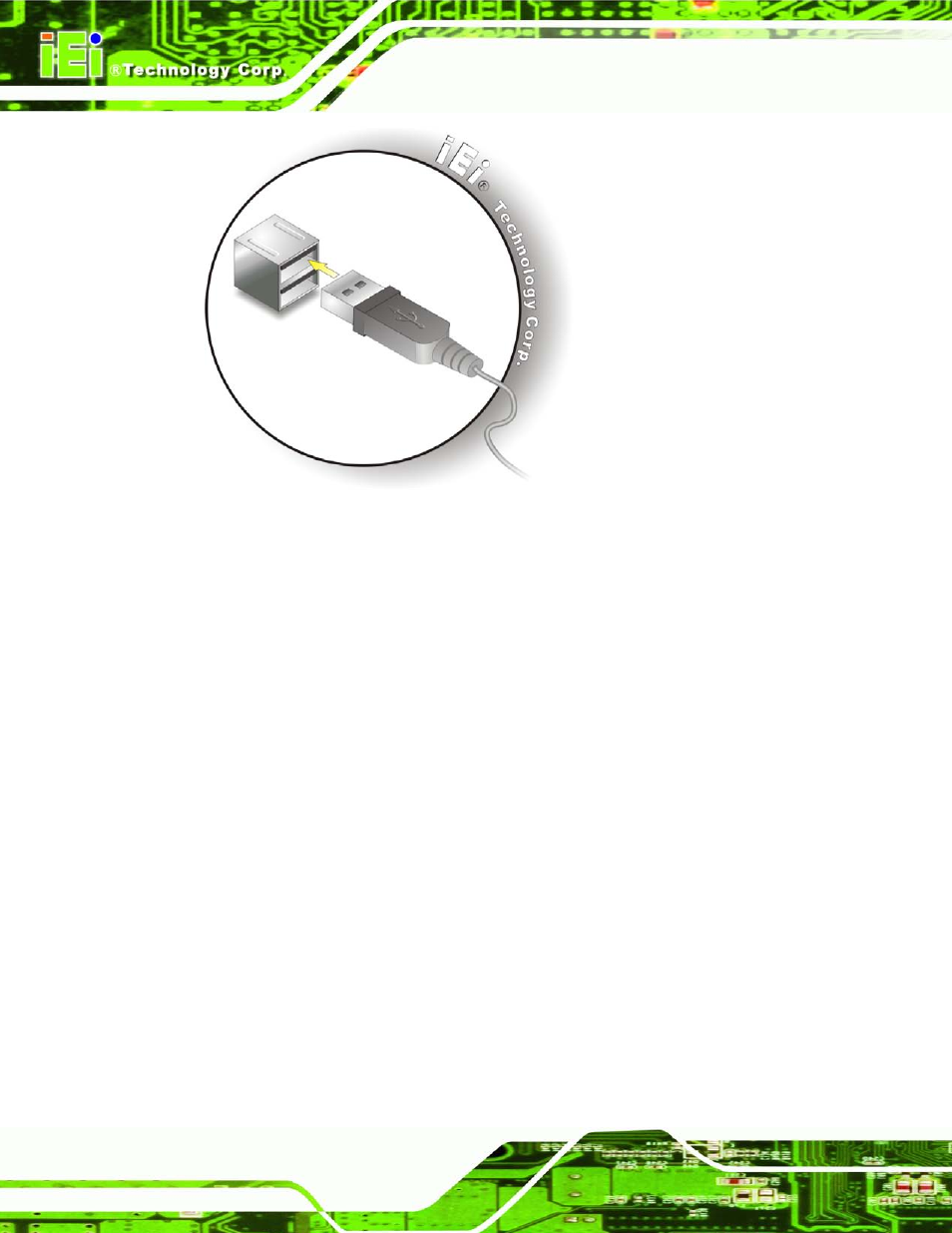

Figure 4-17: USB Connector
4.6 In te l
®
AMT S e tu p P ro c e d u re
The IMB-Q770 is featured with the Intel® Active Management Technology (AMT). To
enable the Intel® AMT function, follow the steps below.
S te p 1: Make sure the memory socket is installed with one DDR3 DIMM.
S te p 2: Connect an Ethernet cable to the RJ-45 connector which supports AMT.
S te p 3: The AMI BIOS options regarding the Intel® ME or Intel® AMT must be enabled,
S te p 4: Properly install the Intel® Management Engine Components drivers from the
iAMT Driver & Utility directory in the driver CD. See Section 6.9.
S te p 5: Configure the Intel® Management Engine BIOS extension (MEBx). To get into
the Intel® MEBx settings, press after a single beep during boot-up
process. Enter the Intel® current ME password as it requires (the Intel® default
password is admin).
