3.2.10 Fro n t P a n e l Au d io Co n n e c to r
CN La b e l: FP _AUDIO1
CN Typ e : 10-pin header
CN Lo c a tio n : See Figure 3-11
CN P in o u ts : See Table 3-11
This connector connects to speakers, a microphone and an audio input.

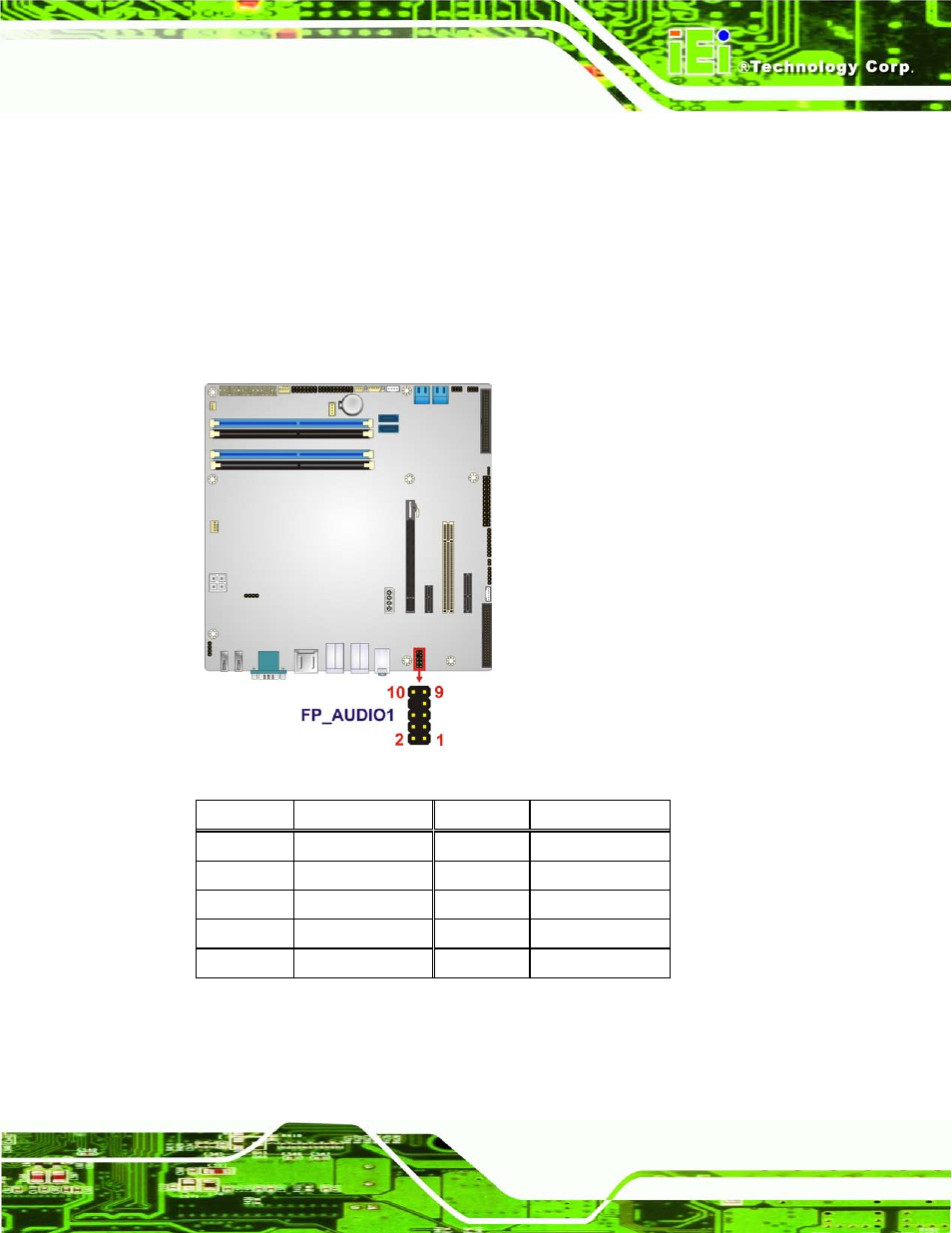

Figure 3-11: Front Panel Audio Connector Location
Pin Description Pin Description
1 MIC2_L 2 GND_AUDIO
3 MIC2_R 4 FP_AUD_DETECT
5 LINE2-R 6 GND_AUDIO
7 F_SENSE 8 NC
9 LINE2_L 10 GND_AUDIO
Table 3-11: Front Panel Audio Connector Pinouts
