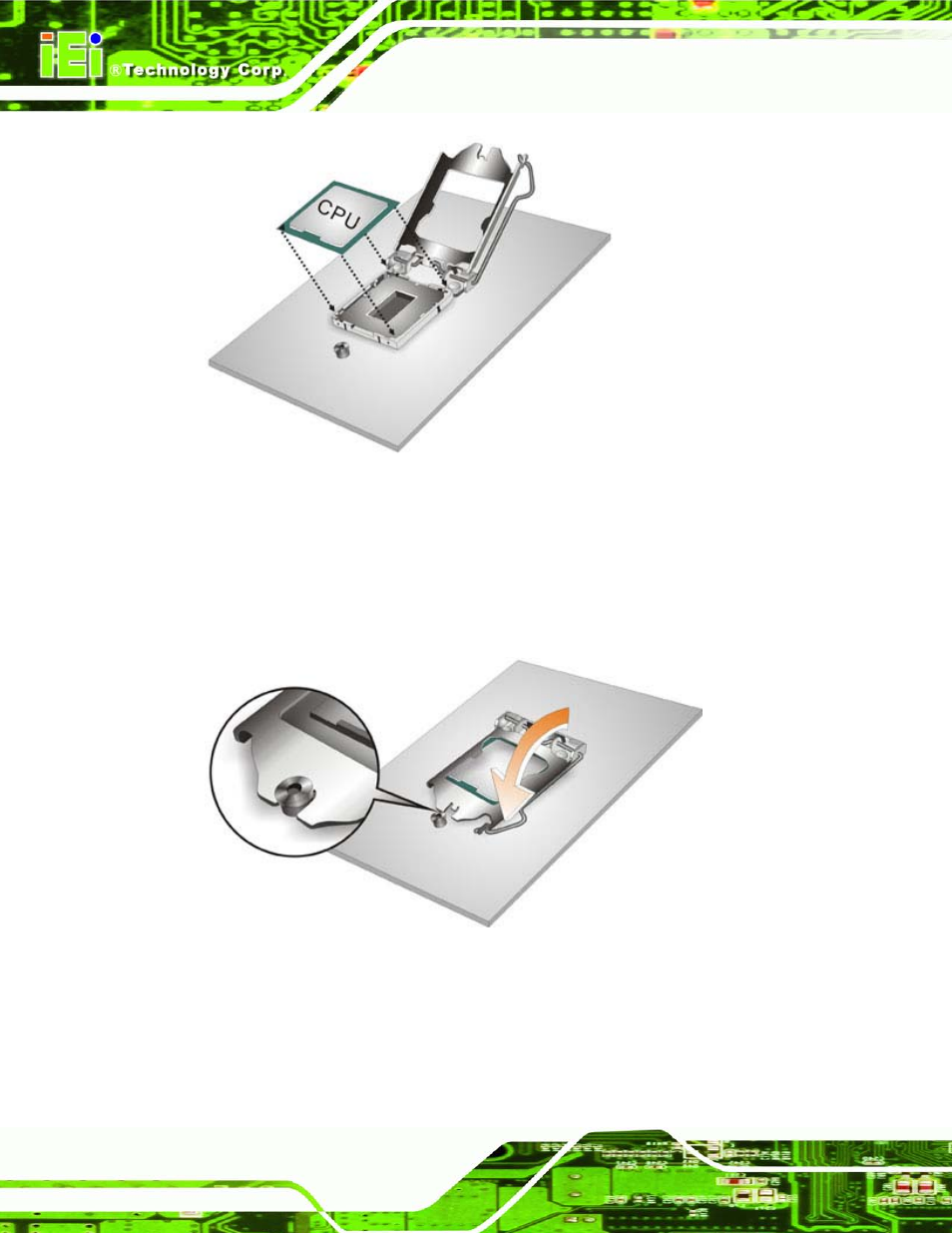

Figure 4-3: Insert the Socket LGA1155 CPU

S te p 8:

Close the CPU socket. Close the load plate and pull the load lever back a little

to have the load plate be able to secure to the knob. Engage the load lever by

pushing it back to its original position (Figure 4-4). There will be some

resistance, but will not require extreme pressure.

Figure 4-4: Close the Socket LGA1155

S te p 9:

Connect the 12 V power to the board. Connect the 12 V power from the power

supply to the board.

S te p 0:
