IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 62

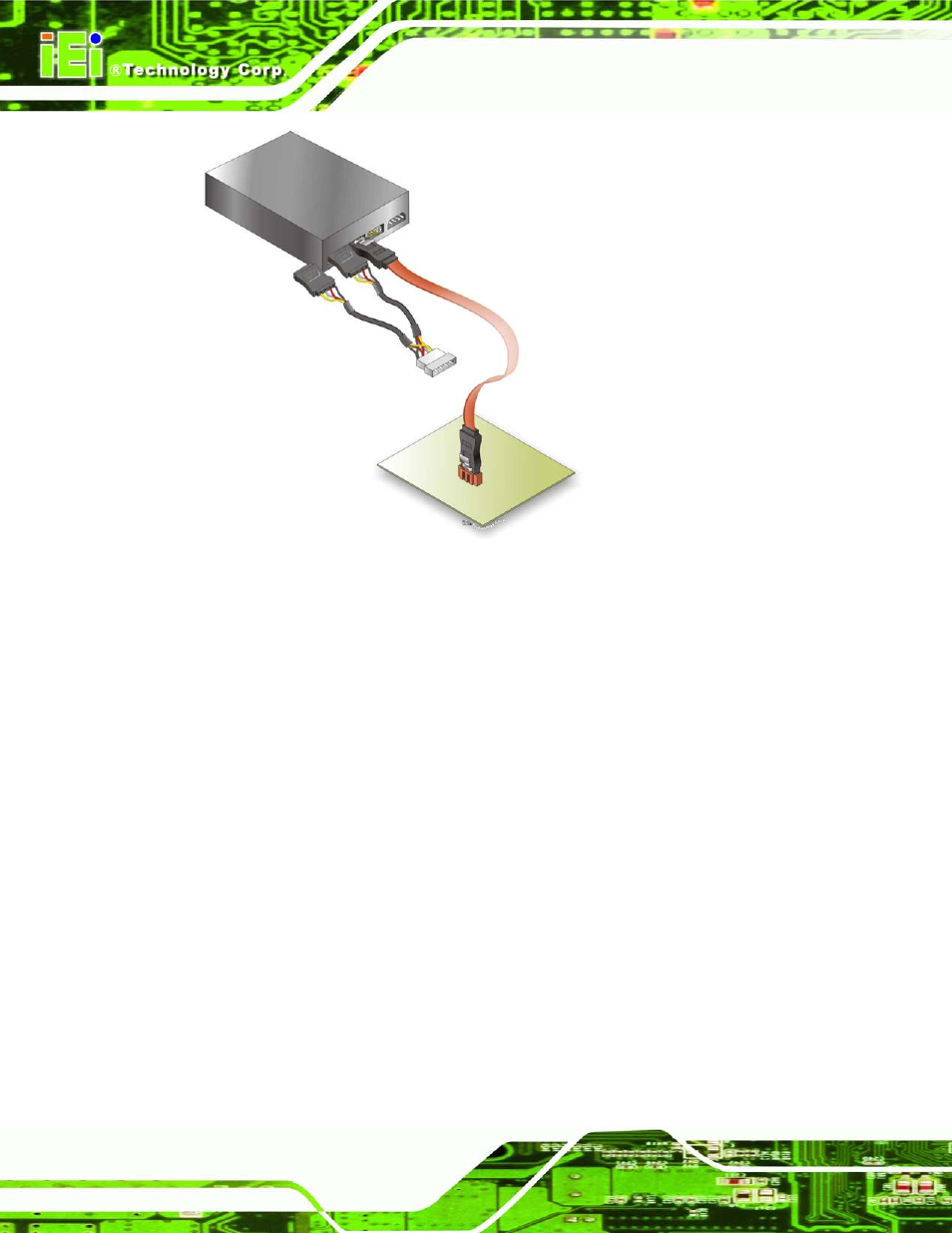

Figure 4-11: SATA Power Drive Connection
The SATA power cable can be bought from IEI. See Optional Items in Section 2.4.
4.5 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c tio n
This section describes connecting devices to the external connectors on the IMB-Q770.
4.5.1 Au d io Co n n e c tio n
The audio jacks on the external audio connector enable the IMB-Q770 to be connected to
a stereo sound setup. Each jack supports both input and output. When connecting a
device, the High Definition Audio utility will automatically detect input or output. The light
blue (top) audio jack does not support input from a microphone. To install the audio
devices, follow the steps below.
S te p 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel.
