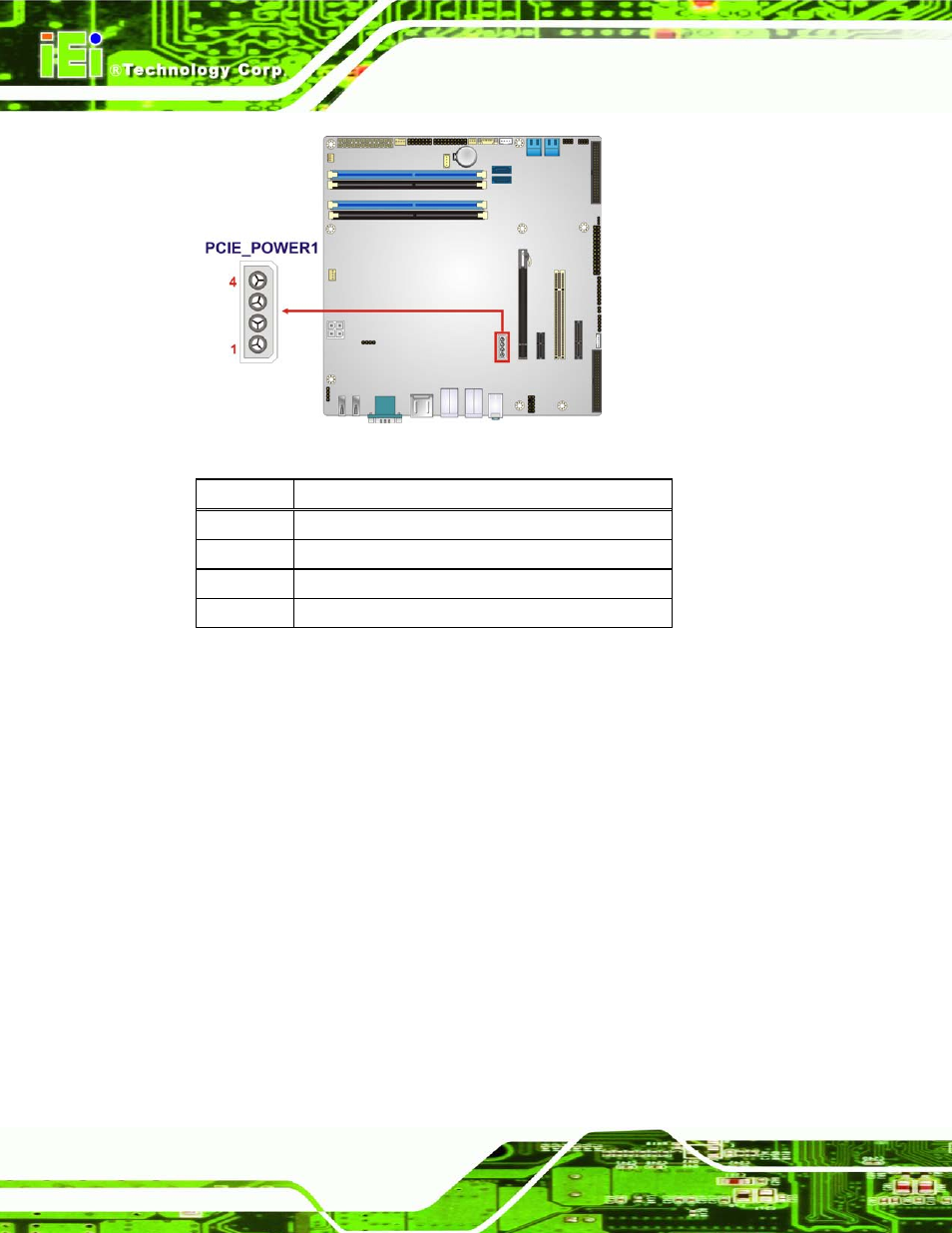

Figure 3-16: PCIe Power Location
Pin Description
1 +12 V
2 GND
3 GND
4 +5 V
Table 3-16: PCIe Power Pinouts
3.2.16 P CI S lo t
CN La b e l: P CI1
CN Typ e : PCI Slot
CN Lo c a tio n : See Figure 3-17
The PCI slot enables a PCI expansion module to be connected to the board.
