IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 20
3.2.2 Ba tte ry Co n n e c to r
CN La b e l: BAT1
CN Typ e : Battery holder
CN Lo c a tio n : See Figure 3-3
This is connected to the system battery. The battery provides power to the system clock to
retain the time when power is turned off.

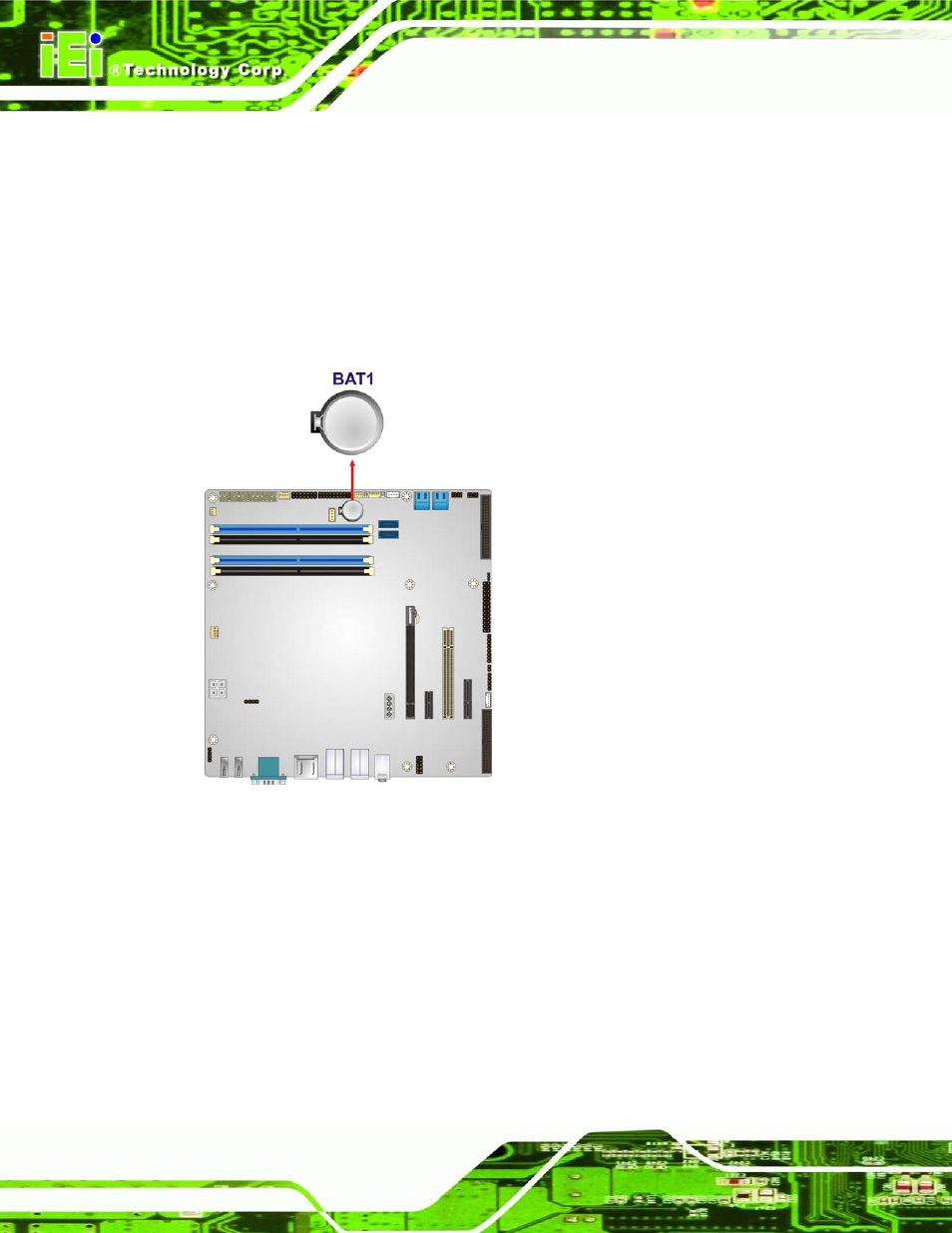

Figure 3-3: Battery Connector Locations
3.2.3 CP U P o we r Co n n e c to r
CN La b e l: CP U12V1
CN Typ e : 4-pin Molex
CN Lo c a tio n : See Figure 3-4
CN P in o u ts : See Table 3-4
The CPU power input connector provides power to the CPU.
