1.1 In tro d u c tio n

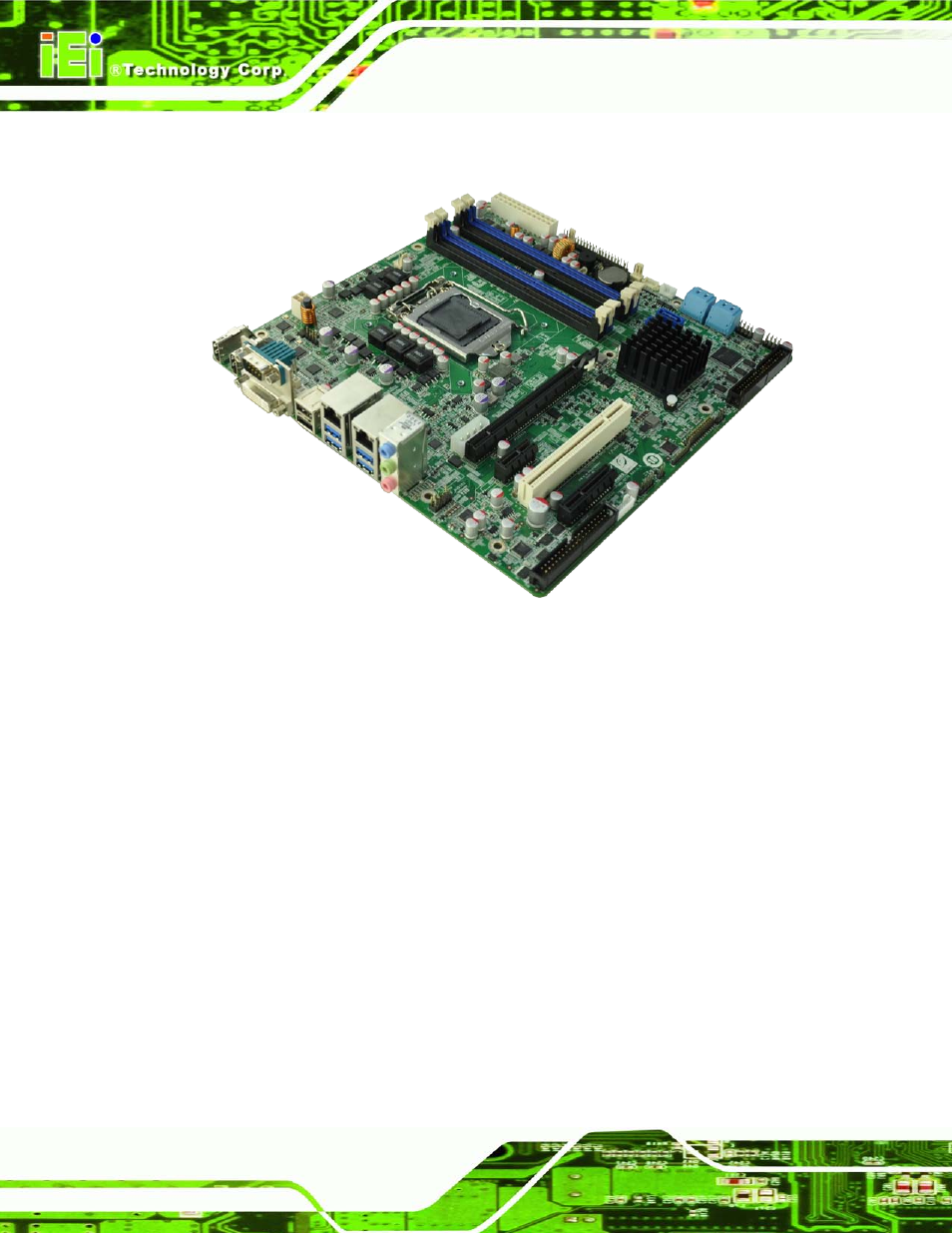

Figure 1-1: IMB-Q770

The IMB-Q770 is an ATX motherboard. It accepts a socket LGA1155 Intel® Core™ i7/i5/i3

quad/dual core processor and supports four 240-pin 1600/1333MHz dual-channel DDR3

SDRAM unbuffered DIMMs (system max. 32GB).

The integrated Intel® Q77 system Chipset supports two GbE LAN: one through the Intel®

82579 PHY with Intel® AMT 8.0 support and the other through the Intel® 82583V PCIe

controller.

The IMB-Q770 includes two HDMI connectors and one DVI-I connector. Expansion and

I/O include one PCI slot, one PCIe x16 slot, one PCIe x4 slot, one PCIe x1 slot, four USB

3.0 ports on the rear panel, two USB 2.0 on the rear panel, four USB 2.0 by pin header,

four SATA 3Gb/s connectors, two SATA 6Gb/s connectors. Serial device connectivity is

provided by eight internal RS-232 connectors, one external RS-232 connector and one

internal RS-232/422/485 connector.
