IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 40

3.2.25 S P I ROM Co n n e c to r

CN La b e l:

J S P I1

CN Typ e :

8-pin header

CN Lo c a tio n :

See Figure 3-26

CN P in o u ts :

See Table 3-20

The SPI connector is used to flash the BIOS.

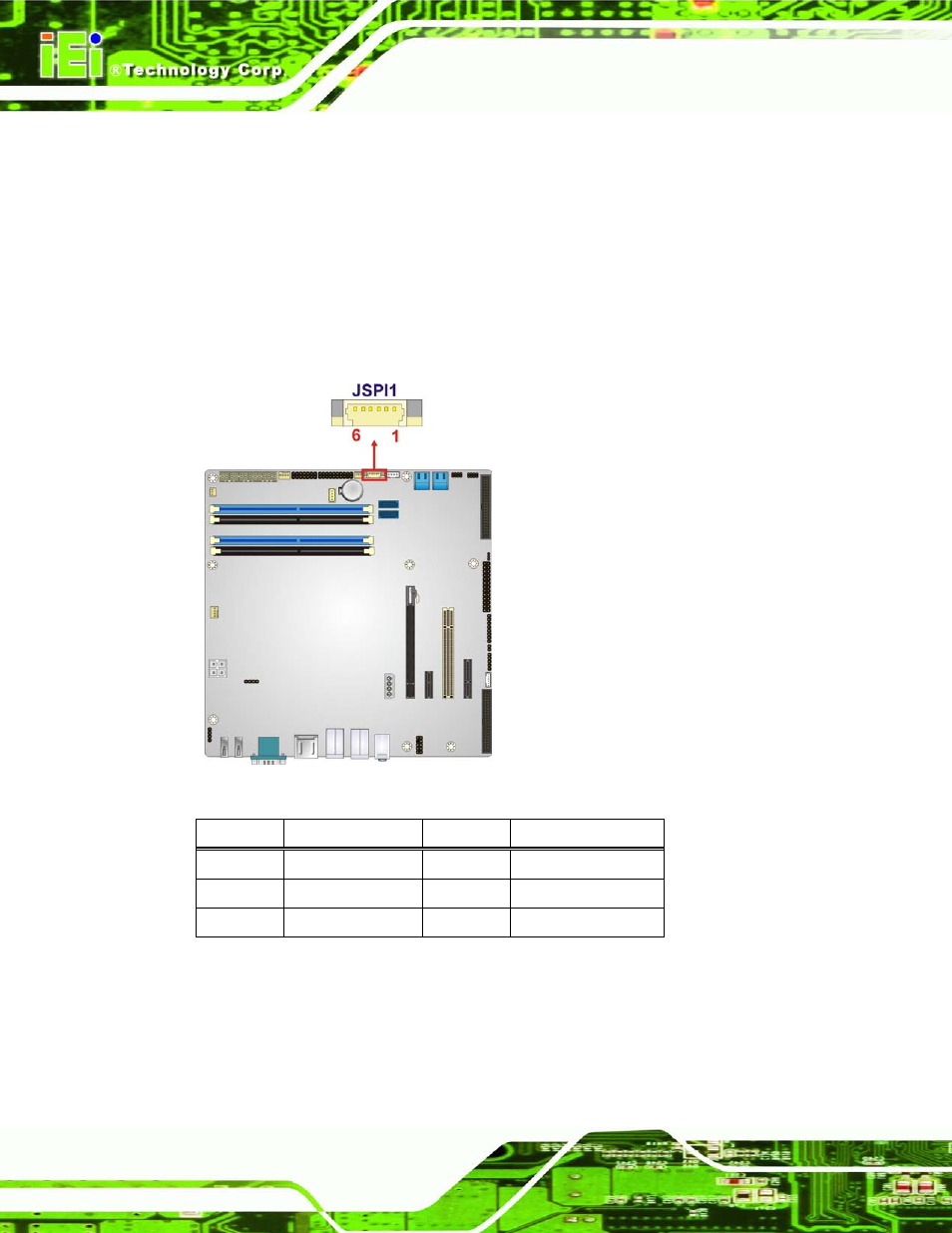

Figure 3-26: SPI Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

+SPI_VCC

2

SPI_CS0#_CN

3

SPI_SO0_CN

4

SPI_CLK0_CN

5

SPI_SI0_CN

6

GND

Table 3-20: SPI Connector Pinouts

3.2.26 TP M Co n n e c to r

CN La b e l:

TP M1
