Setting Description
Table 4-2: AT/ATX Power Select Jumper Settings

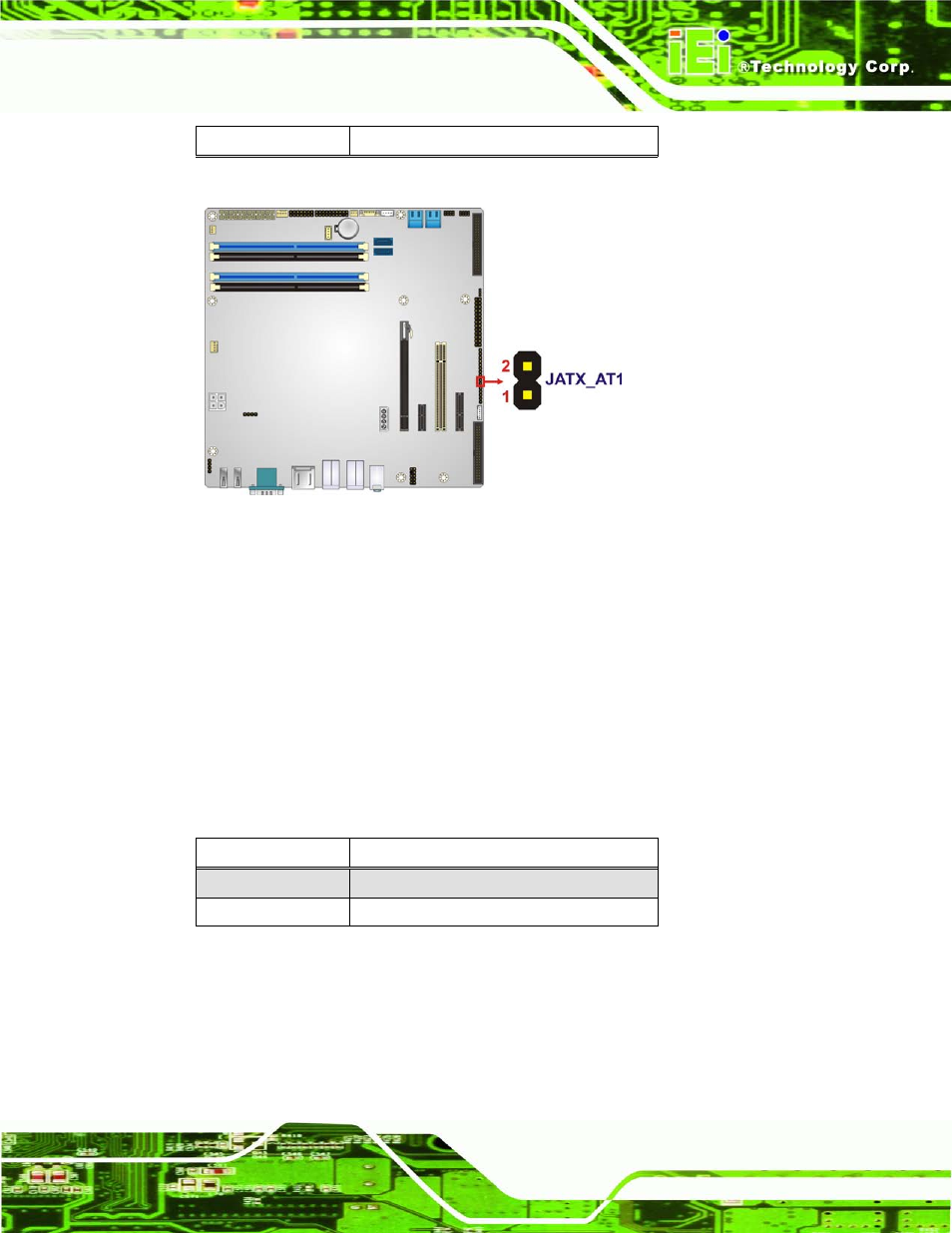

Figure 4-8: AT/ATX Power Select Jumper Location
4.3.2 Cle a r CMOS J u m p e r
J u m p e r La b e l: J _CMOS 2
J u m p e r Typ e : 3-pin header
J u m p e r S e ttin g s : See Table 4-3
J u m p e r Lo c a tio n : See Figure 4-9
To reset the BIOS, move the jumper to the "Clear BIOS" position for 3 seconds or more,
and then move back to the default position.
Setting Description
1-2 Keep CMOS Setup (Default)
2-3 Clear CMOS Setup
Table 4-3: Clear BIOS Jumper Settings
