IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 23

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1

+3.3V

2

GND

3

CSDA_1/2

4

CSCL_1/2

Table 3-5: Debug Port Connector Pinouts

3.2.6 Dig ita l I/O Co n n e c to r

CN La b e l:

DIO1

CN Typ e :

26-pin header

CN Lo c a tio n :

See Figure 3-7

CN P in o u ts :

See Table 3-6

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 12-bit output and 12-bit input.

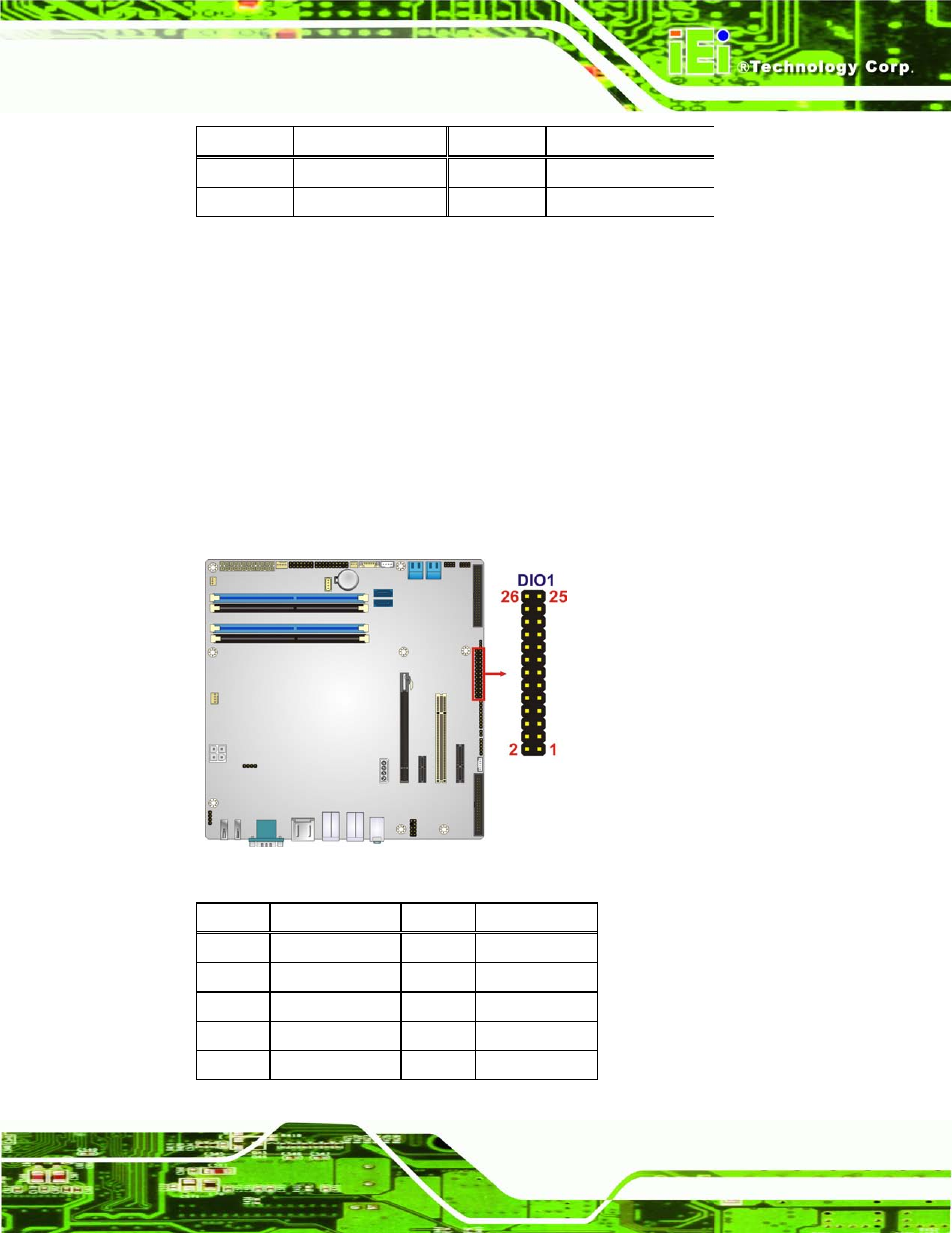

Figure 3-7: Digital I/O Connector Location

PIN NO. DESCRIPTION

PIN NO. DESCRIPTION

1

GND

2

+5V

3

D_IN0

4

D_OUT0

5

D_IN1

6

D_OUT1

7

D_IN2

8

D_OUT2

9

D_IN3

10

D_OUT3
