IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 25

Pin

Description

Pin

Description

1

GND

2

+12 V

3

FANIO1

4

FANOUT1

Table 3-7: CPU Fan Connector Pinouts

3.2.8 Fa n Co n n e c to r (S ys te m )

CN La b e l:

S YS _FAN1, S YS _FAN2

CN Typ e :

4-pin wafer and 3-pin wafer

CN Lo c a tio n :

See Figure 3-9

CN P in o u ts :

See Table 3-8 and Table 3-9

The fan connector attaches to a cooling fan.

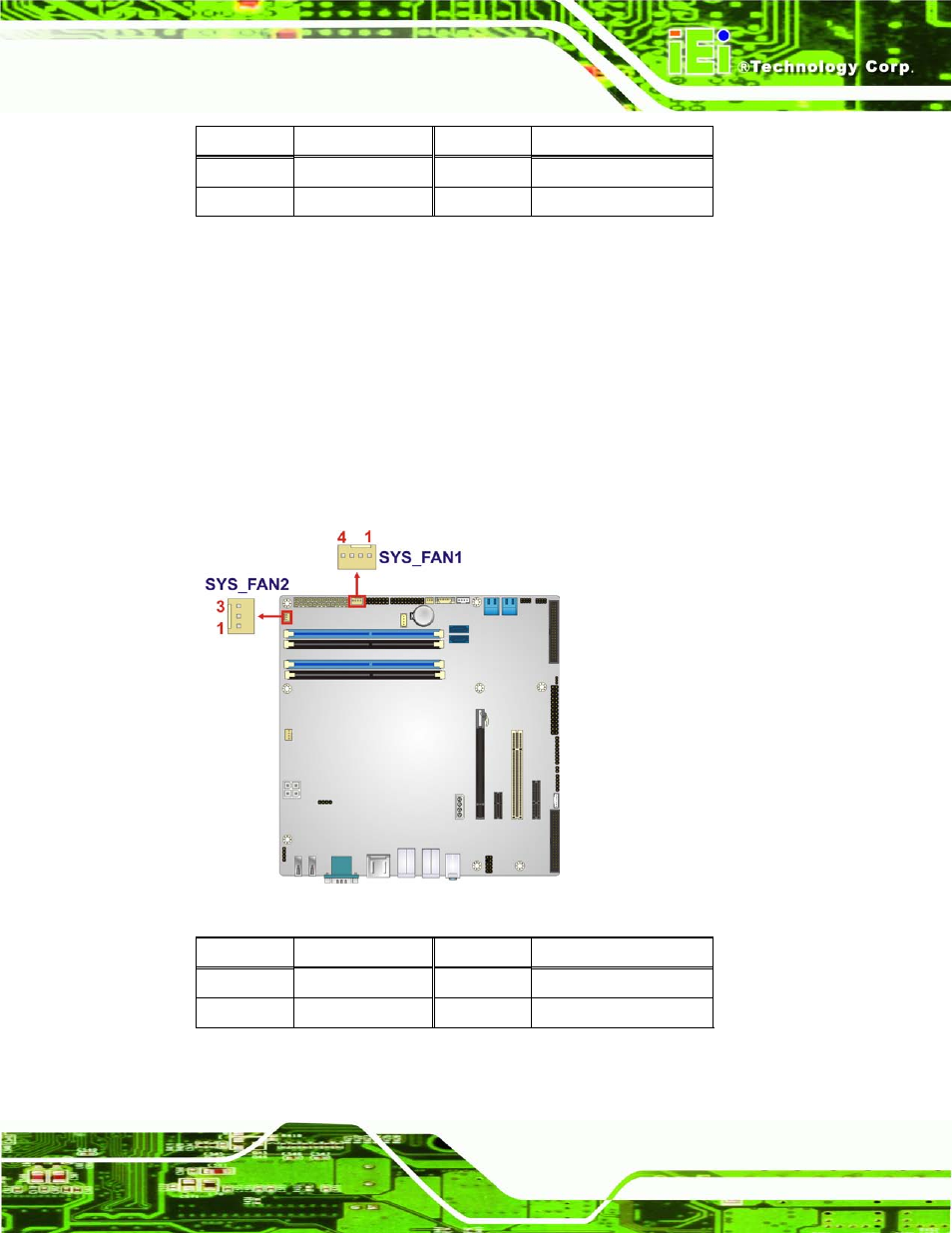

Figure 3-9: System Fan Connector Location

Pin

Description

Pin

Description

1

GND

2

+12 V

3

FANIO3

4

FANOUT3

Table 3-8: System Fan Connector Pinouts (SYS_FAN1)
