IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 35

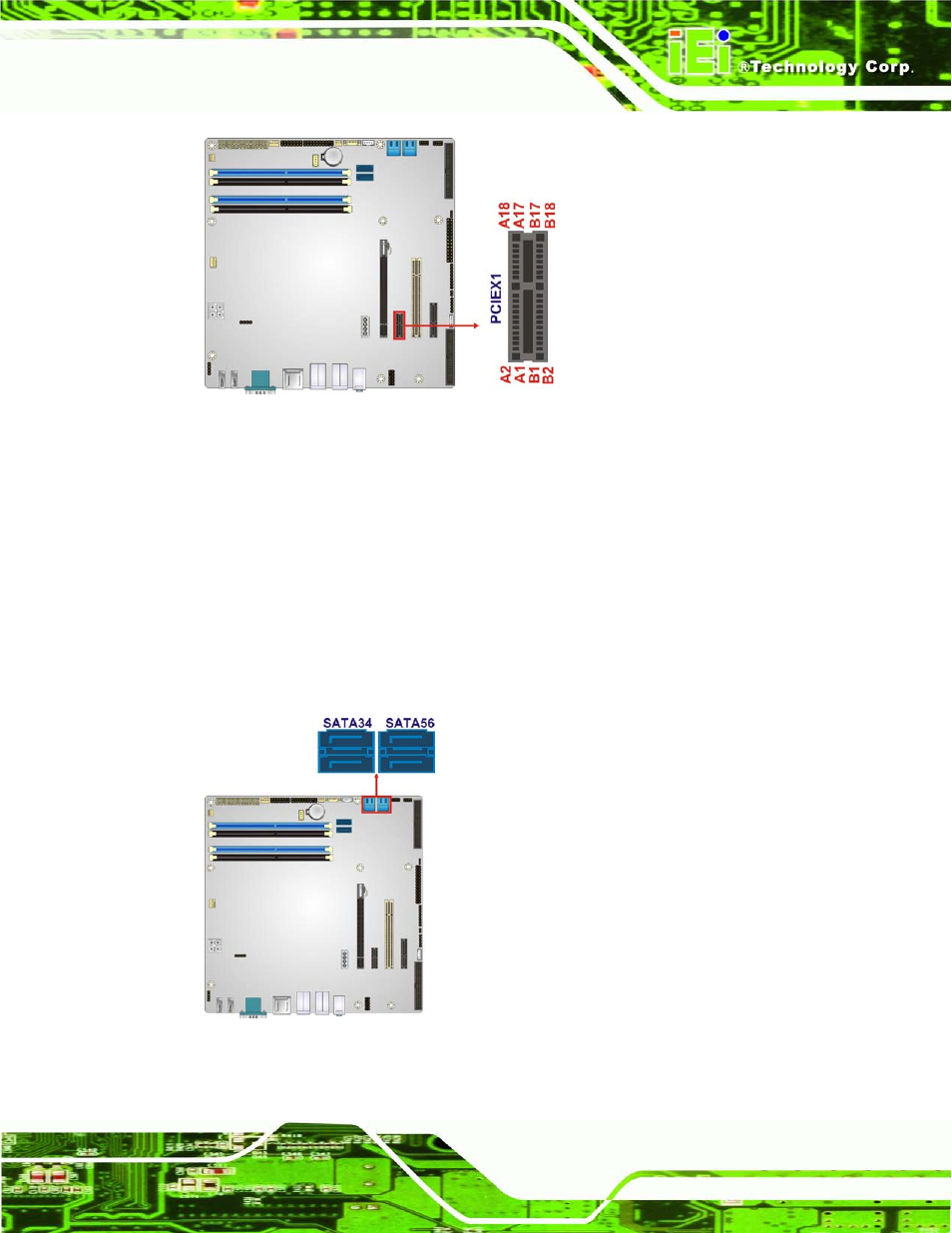

Figure 3-20: PCIe x1 Slot Locations

3.2.20 S ATA 3Gb /s Drive Co n n e c to rs

CN La b e l:

S ATA34, S ATA56

CN Typ e :

14-pin SATA connector

CN Lo c a tio n :

See Figure 3-21

The SATA drive connectors can be connected to SATA drives and support up to 3Gb/s

data transfer rate.

Figure 3-21: SATA 3Gb/s Drive Connector Location
