IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 22

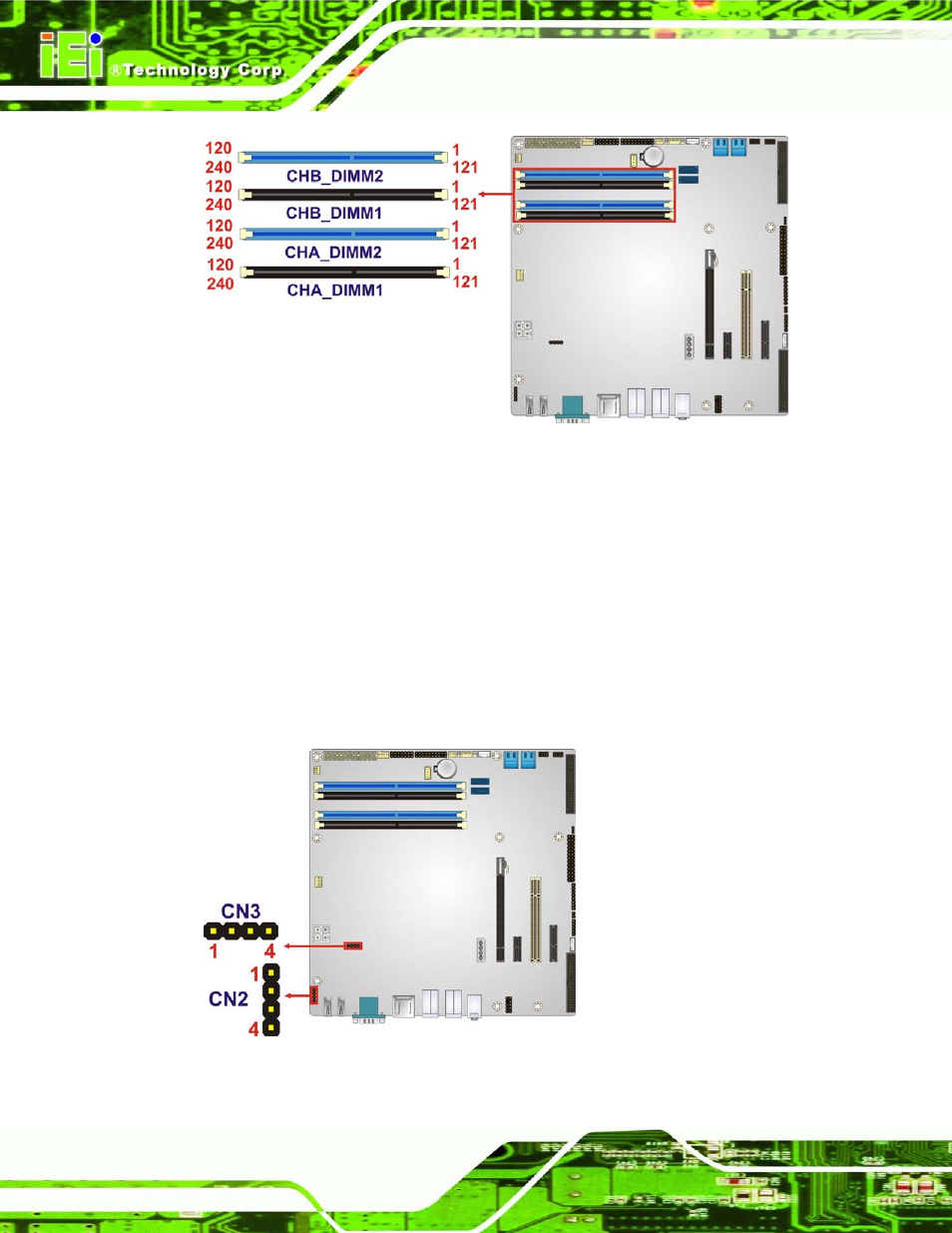

Figure 3-5: DDR3 DIMM Slot Locations
3.2.5 De b u g P o rt Co n n e c to r
CN La b e l: CN2,CN3
CN Typ e : 4-pin header
CN Lo c a tio n : See Figure 3-6
CN P in o u ts : See Table 3-5
The debug port connector is for system debug.
Figure 3-6: Debug Port Connector Location
