IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 29

3.2.12 FW P ro g ra m m in g Co n n e c to r

CN La b e l:

CN1

CN Typ e :

8-pin header

CN Lo c a tio n :

See Figure 3-13

CN P in o u ts :

See Table 3-13

The FW Programming connector is used for programming the firmware.

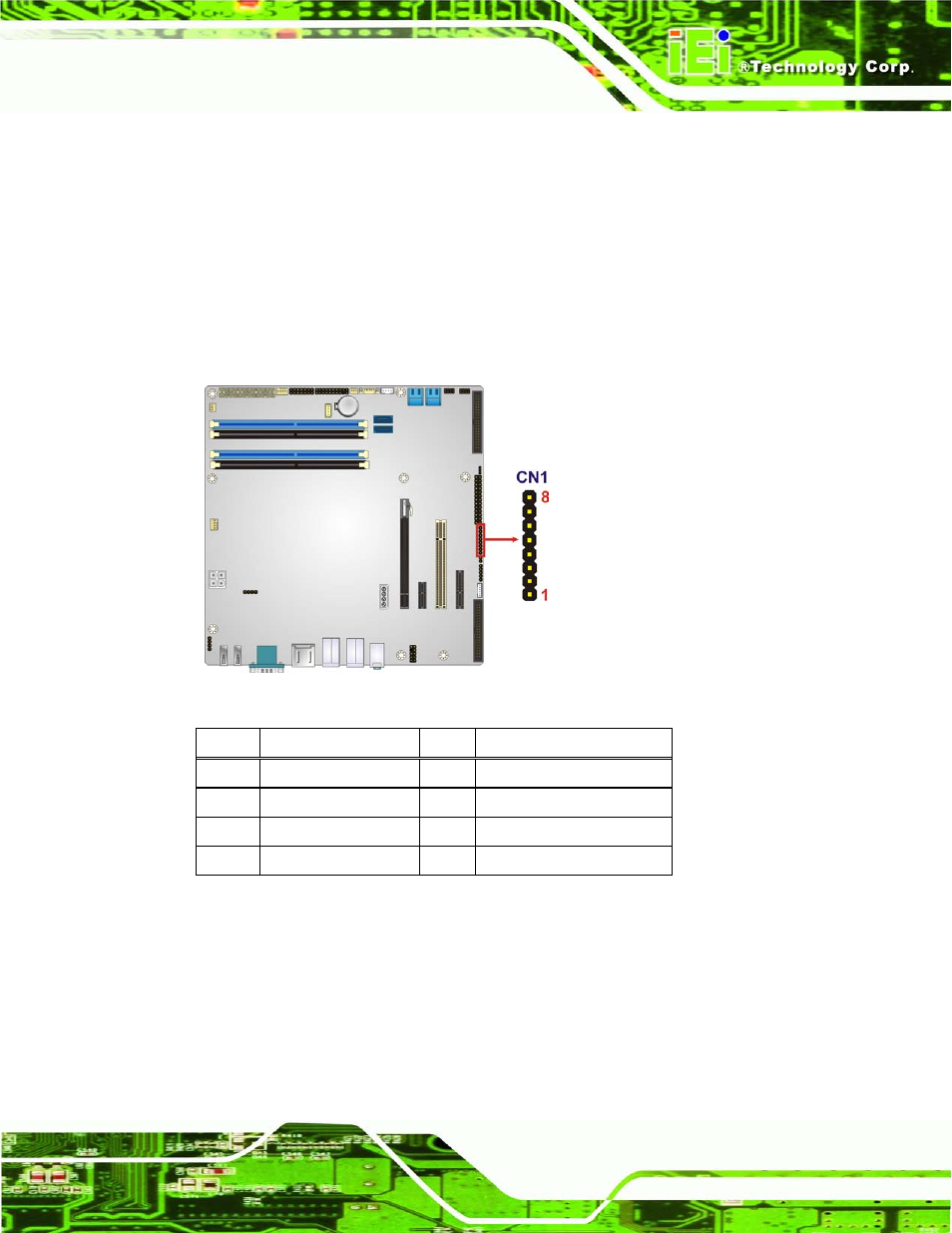

Figure 3-13: FW Programming Connector Location

Pin

Description

Pin

Description

1

+3.3V

2

TDO

3

TDI

4

NC

5

NC

6

TMS

7

GND

8

TCK

Table 3-13: FW Programming Connector Pinouts

3.2.13 In fra re d In te rfa c e Co n n e c to r

CN La b e l:

IR1

CN Typ e :

5-pin header

CN Lo c a tio n :

See Figure 3-14
