IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 26
Pin Description Pin Description
1 NC 2 +12 V
3 GND
Table 3-9: System Fan Connector Pinouts (SYS_FAN2)
3.2.9 Fa n Co n n e c to r (P CH)
CN La b e l: P CH_FAN1
CN Typ e : 3-pin wafer
CN Lo c a tio n : See Figure 3-10
CN P in o u ts : See Table 3-10
The fan connector attaches to a PCH cooling fan.

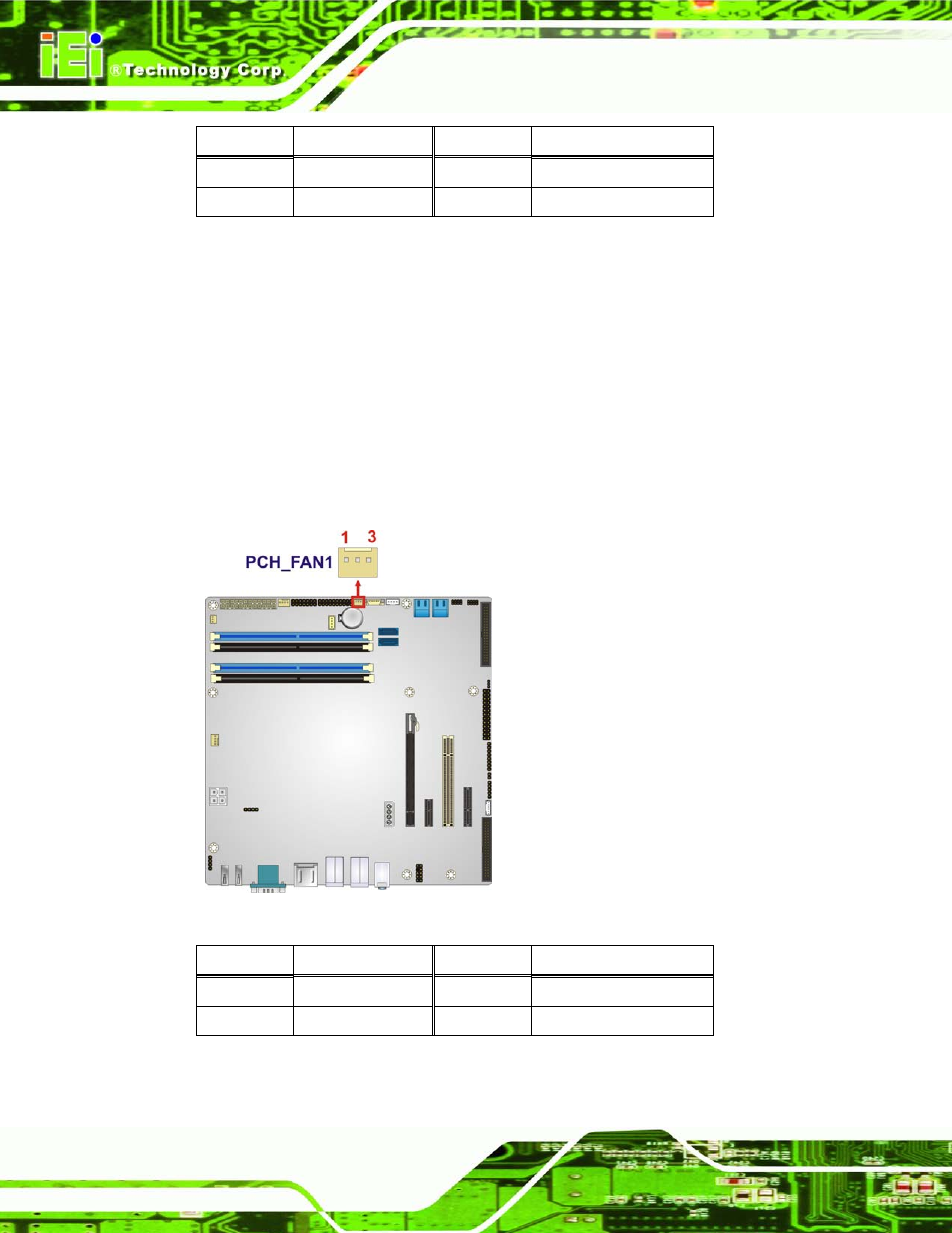

Figure 3-10: PCH Fan Connector Location
Pin Description Pin Description
1 FANIO2 2 FANOUT2
3 GND
Table 3-10: PCH Fan Connector Pinouts
