IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 43
3.3 Exte rn a l P e rip h e ra l In te rfa c e Co n n e c to r P a n e l

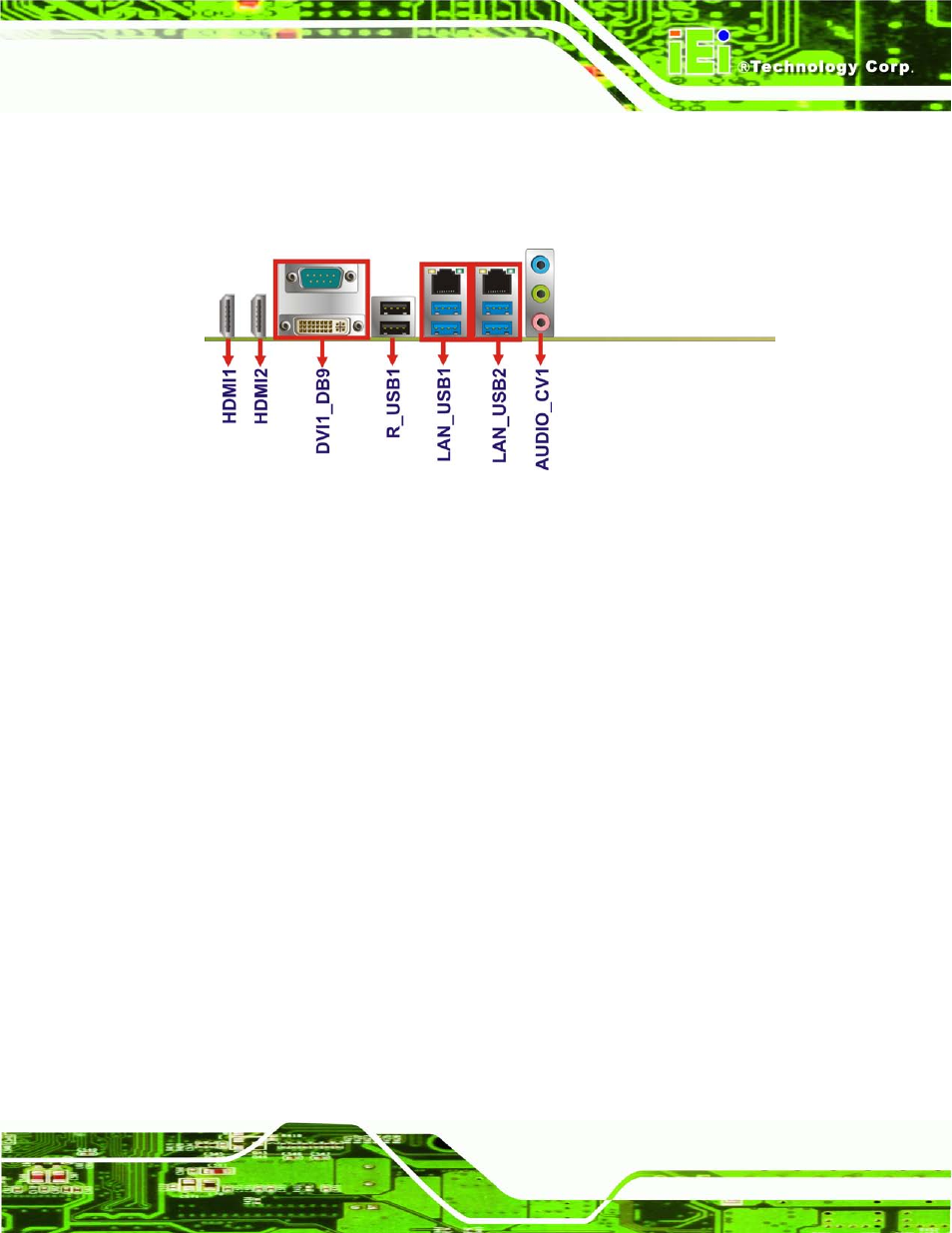

The figure below shows the external peripheral interface connector (EPIC) panel. The
EPIC panel consists of the following:
Figure 3-29: External Peripheral Interface Connector
3.3.1 Au d io Co n n e c to r
CN La b e l: AUDIO_CV1
CN Typ e : Audio jack
CN Lo c a tio n : See Figure 3-29
The audio jacks connect to external audio devices.
 Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
 Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
 Microphone (Pink): Connects a microphone.
