IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 65

S te p 2:

Align the connector. Align the HDMI connector with the HDMI port. Make sure

the orientation of the connector is correct

S te p 3:

Insert the HDMI connector. Gently insert the HDMI connector. The connector

should engage with a gentle push. If the connector does not insert easily, check

again that the connector is aligned correctly, and that the connector is being

inserted with the right way up.

S te p 0:

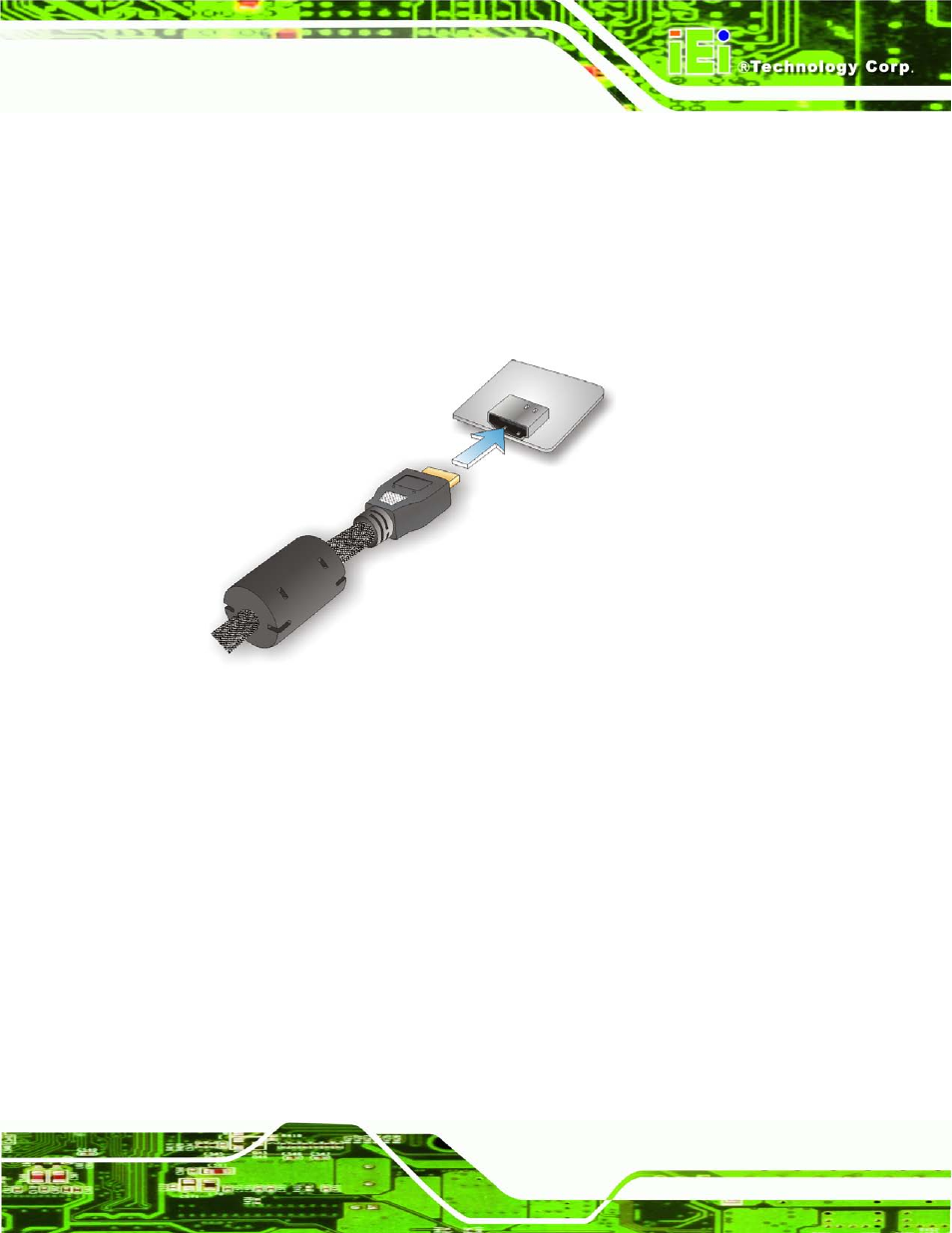

Figure 4-14: HDMI Connection

4.5.4 LAN Co n n e c tio n

There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection

to an external network. To connect a LAN cable with an RJ-45 connector, please follow

the instructions below.

S te p 1:

Locate the RJ-45 connectors. The locations of the USB connectors are shown

in Chapter 4.

S te p 2:

Align the connectors. Align the RJ-45 connector on the LAN cable with one of

the RJ-45 connectors on the IMB-Q770. See Figure 4-15.
