IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 16

3.1 P e rip h e ra l In te rfa c e Co n n e c to rs

This chapter details all the jumpers and connectors.

3.1.1 IMB-Q770 La yo u t

The figures below show all the connectors and jumpers.

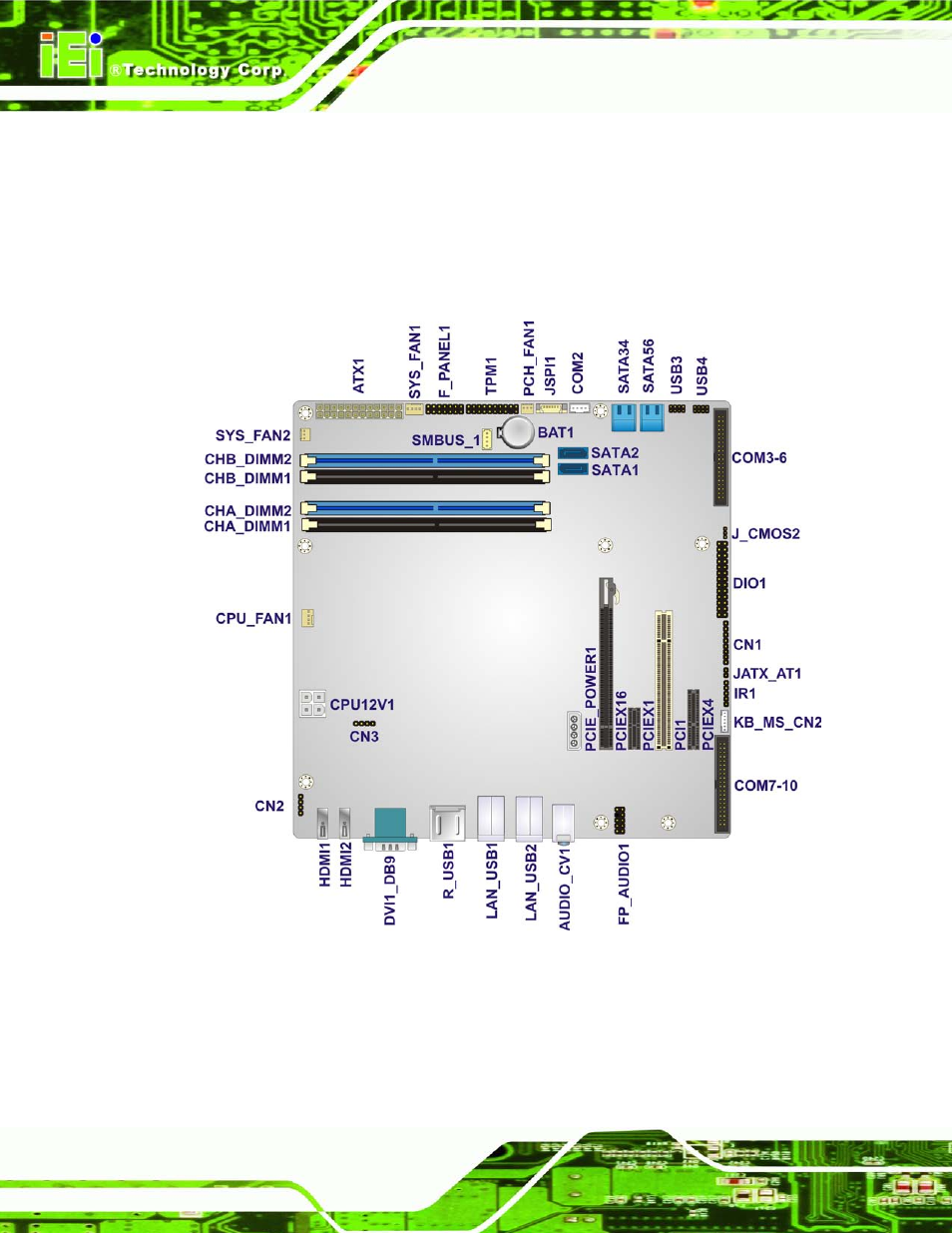

Figure 3-1: Connectors and Jumpers
