IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 63
S te p 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
Line Out port (Lime): Connects to a headphone or a speaker.
Microphone (Pink): Connects a microphone.

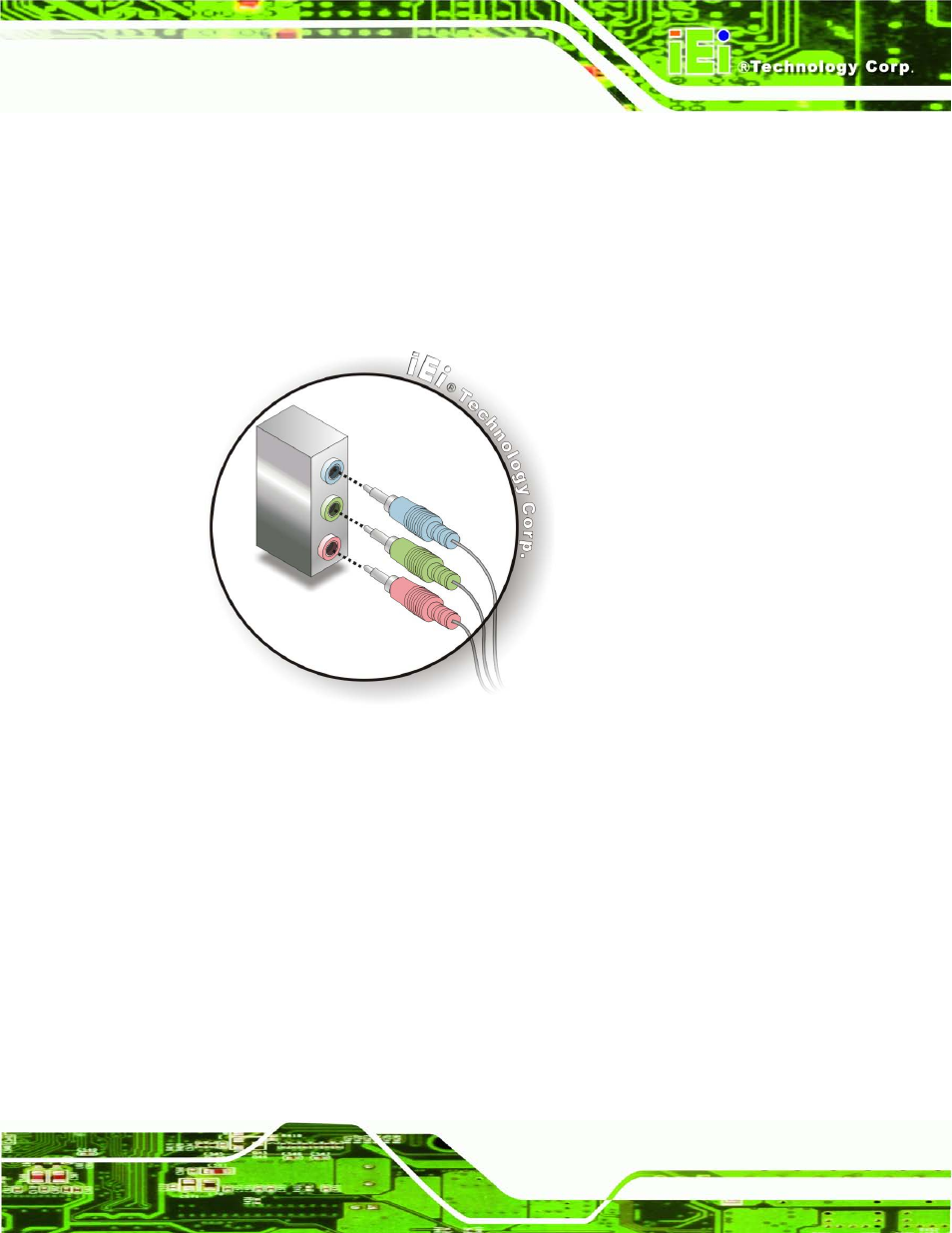

Figure 4-12: Audio Connector
S te p 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.5.2 DVI Dis p la y De vic e Co n n e c tio n
The IMB-Q770 has a single female DVI-D connector on the external peripheral interface
panel. The DVI-D connector is connected to a digital display device. To connect a digital
display device to the IMB-Q770, please follow the instructions below.
S te p 1: Locate the DVI-D connector. The location of the DVI-D connector is shown in
another chapter.
