IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 30
CN P in o u ts : See Table 3-14
The infrared connector attaches to an infrared receiver for use with remote controls.

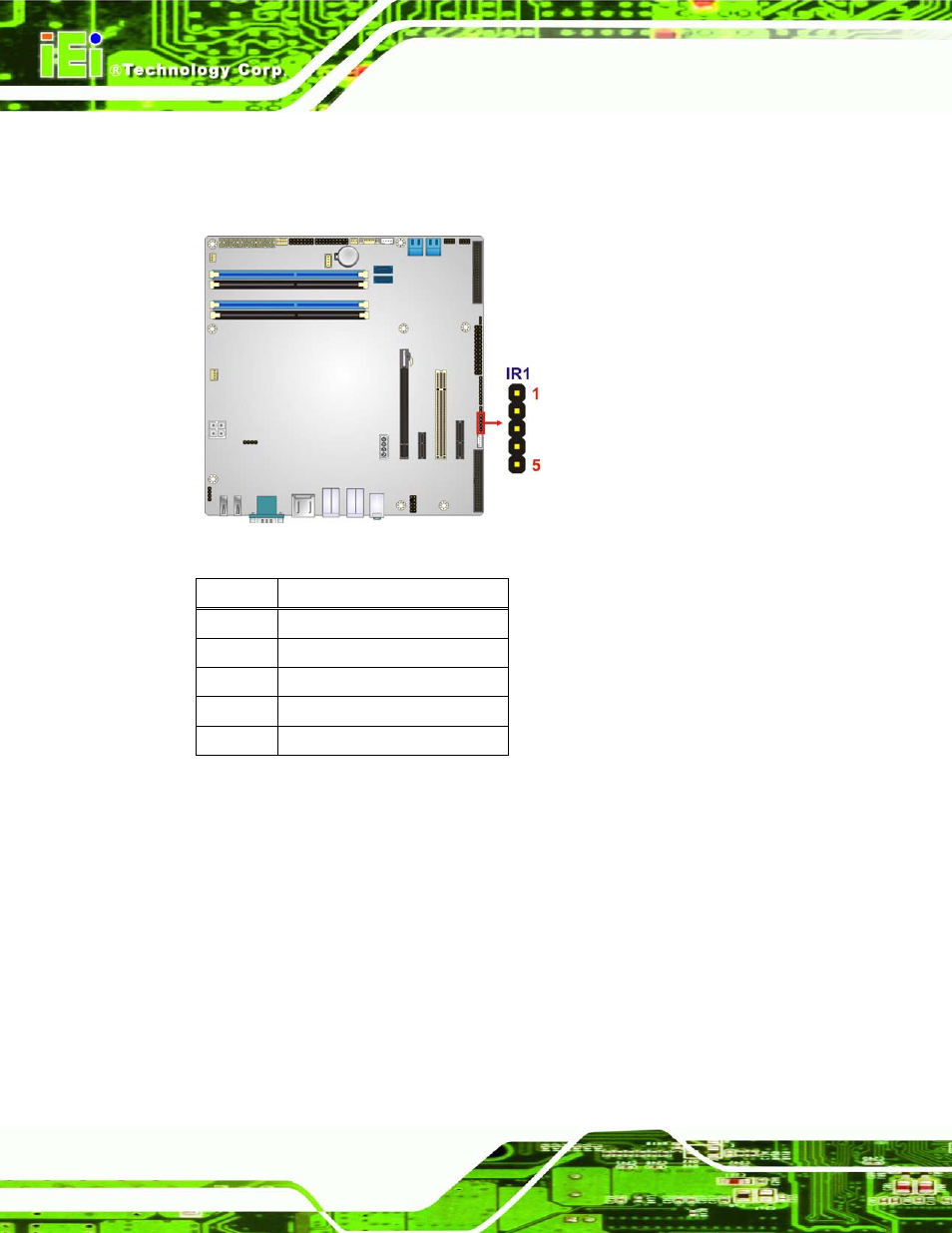

Figure 3-14: Infrared Connector Location
Pin Description
1 +5V
2 NC
3 IR_RX
4 GND
5 IR_TX
Table 3-14: Infrared Connector Pinouts
3.2.14 Ke yb o a rd /Mo u s e Co n n e c to r
CN La b e l: KB_MS _CN2
CN Typ e : 6-pin wafer
CN Lo c a tio n : See Figure 3-15
CN P in o u ts : See Table 3-15
The keyboard/mouse connector connects to a PS/2 Y-cable that can be connected to a
PS/2 keyboard and mouse.
