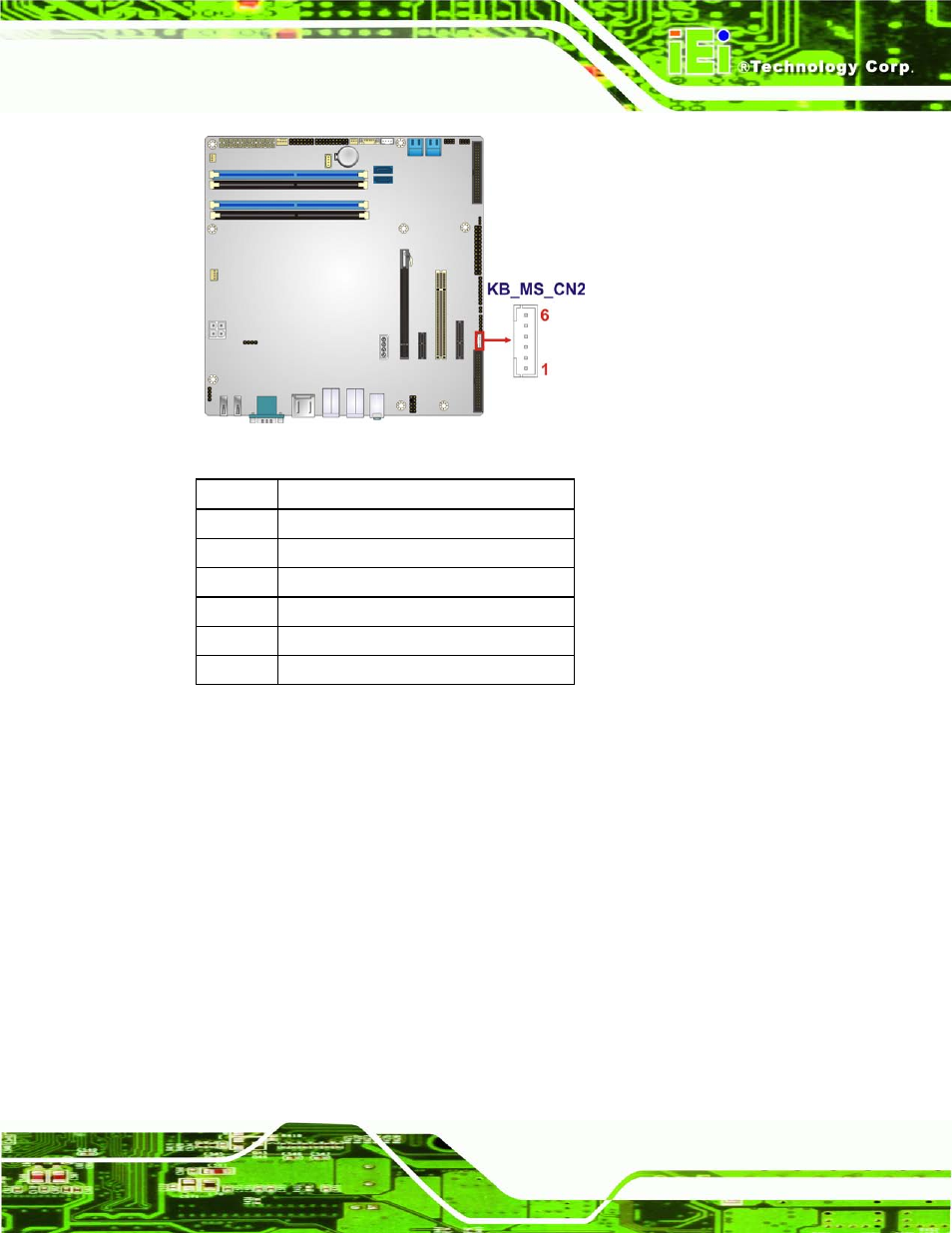

Figure 3-15: Keyboard/Mouse Connector Location
Pin Description
1 +5V_KBMS
2 MSDATA
3 MSCLK
4 KBDATA
5 KBCLK
6 GND
Table 3-15: Keyboard/Mouse Connector Pinouts
3.2.15 P CIe P o we r Co n n e c to r
CN La b e l: P CIE_P OWER1
CN Typ e : 4-pin Molex
CN Lo c a tio n : See Figure 3-16
CN P in o u ts : See Table 3-16
PCIe power connector provides extra power to the PCIe x16 card.
