IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 55
4.2.2 S o c ke t LGA1155 Co o lin g Kit In s ta lla tio n
WARNING:
DO NOT attempt to install a push-pin cooling fan.
The pre-installed support bracket prevents the board from bending and
is ONLY compatible with captive screw type cooling fans.

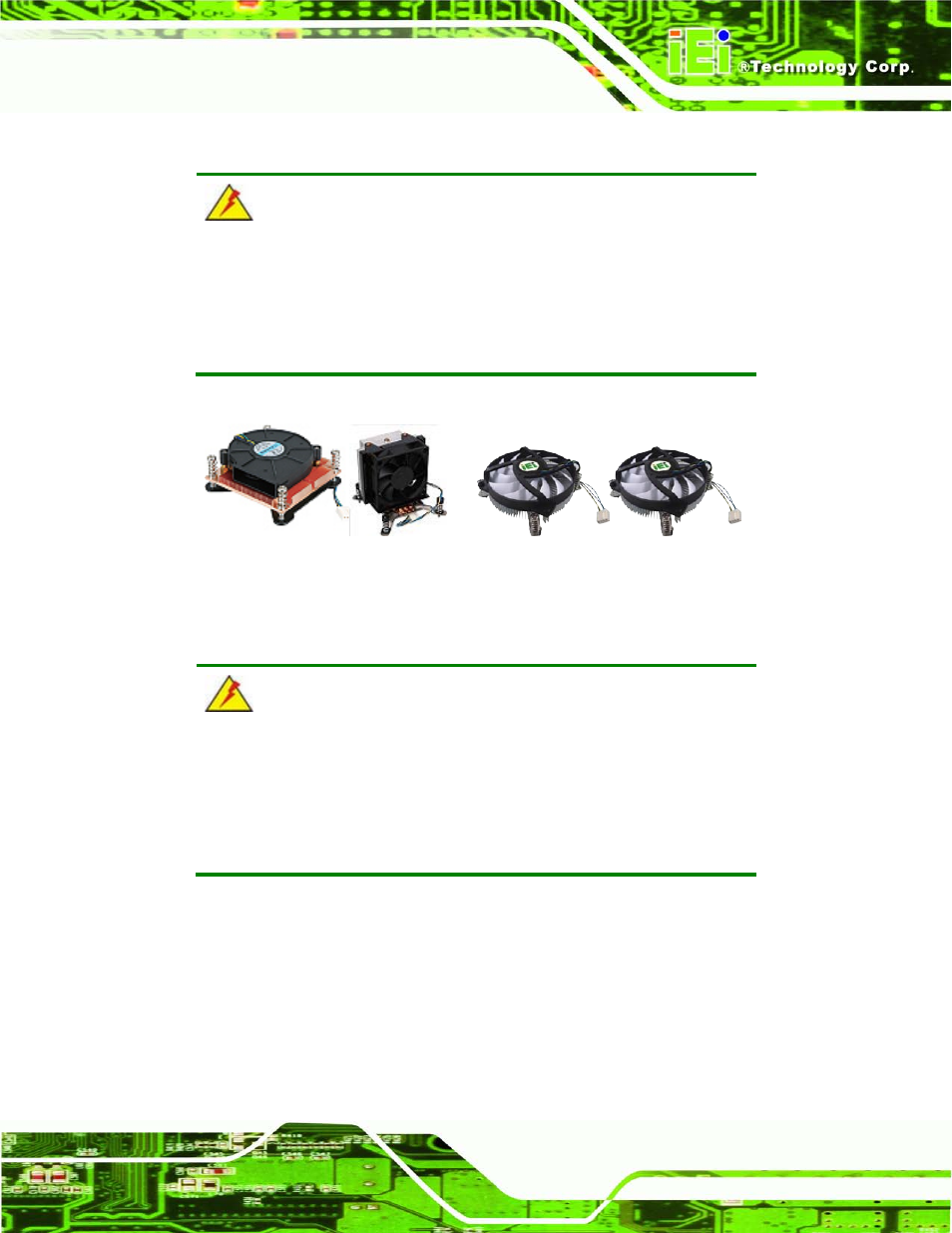

Figure 4-5: Cooling Kits (CF-1156A-RS, CF-1156B-RS, CF-1156C-RS,
CF-1156D-RS)
The cooling kit can be bought from IEI. The cooling kit has a heatsink and fan.
WARNING:
Do not wipe off (accidentally or otherwise) the pre-sprayed layer of
thermal paste on the bottom of the heat sink. The thermal paste
between the CPU and the heat sink is important for optimum heat
dissipation.
To install the cooling kit, follow the instructions below.
S te p 1: A cooling kit bracket is pre-installed on the rear of the motherboard. See Figure
4-6.
