IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 66

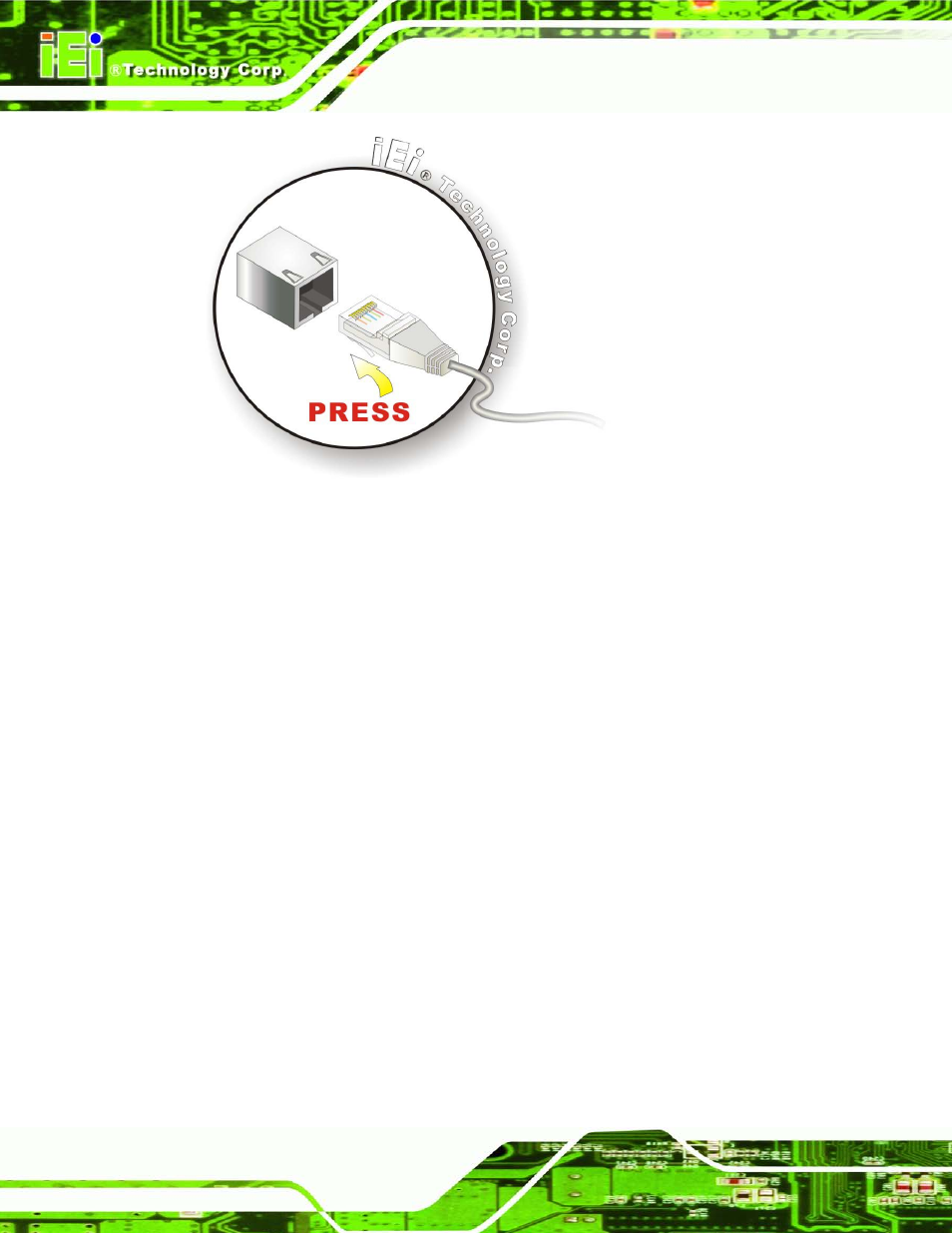

Figure 4-15: LAN Connection

S te p 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

S te p 0:

4.5.5 S e ria l De vic e Co n n e c tio n

The IMB-Q770 has a single female DB-9 connector on the external peripheral interface

panel for a serial device. Follow the steps below to connect a serial device to the

IMB-Q770.

S te p 1:

Locate the DB-9 connector. The location of the DB-9 connector is shown in

Chapter 3.

S te p 2:

Insert the serial connector.

Insert the DB-9 connector of a serial device into

the DB-9 connector on the external peripheral interface. See Figure 4-16.
