IMB-Q770 Mic ro -ATX Mo th e rb o a rd
P a g e 33

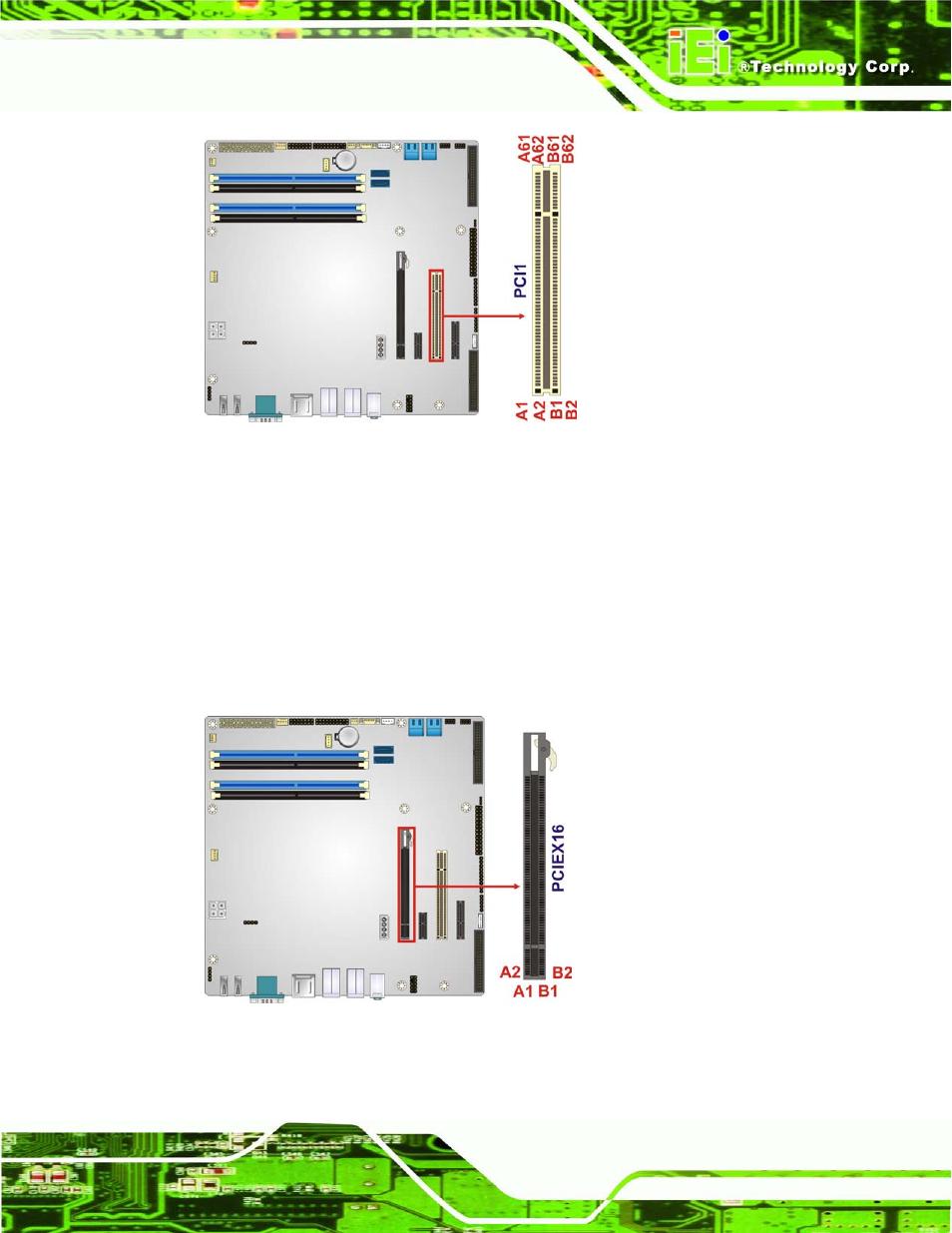

Figure 3-17: PCI Slot Locations
3.2.17 P CIe x16 S lo t
CN La b e l: P CIEX16
CN Typ e : PCIe x16 slot
CN Lo c a tio n : See Figure 3-18
The PCIe x16 slot is for PCIe x16 expansion cards.
Figure 3-18: PCIe x16 Slot Location
