IMB-Q770 Mic ro -ATX Mo th e rb o a rd

P a g e 64

S te p 2:

Align the DVI-D connector. Align the male DVI-D connector on the digital

display device cable with the female DVI-D connector on the external peripheral

interface.

S te p 3:

Insert the DVI-D connector

Once the connectors are properly aligned with the

male connector, insert the male connector from the digital display device into the

female connector on the IMB-Q770. See Figure 4-13.

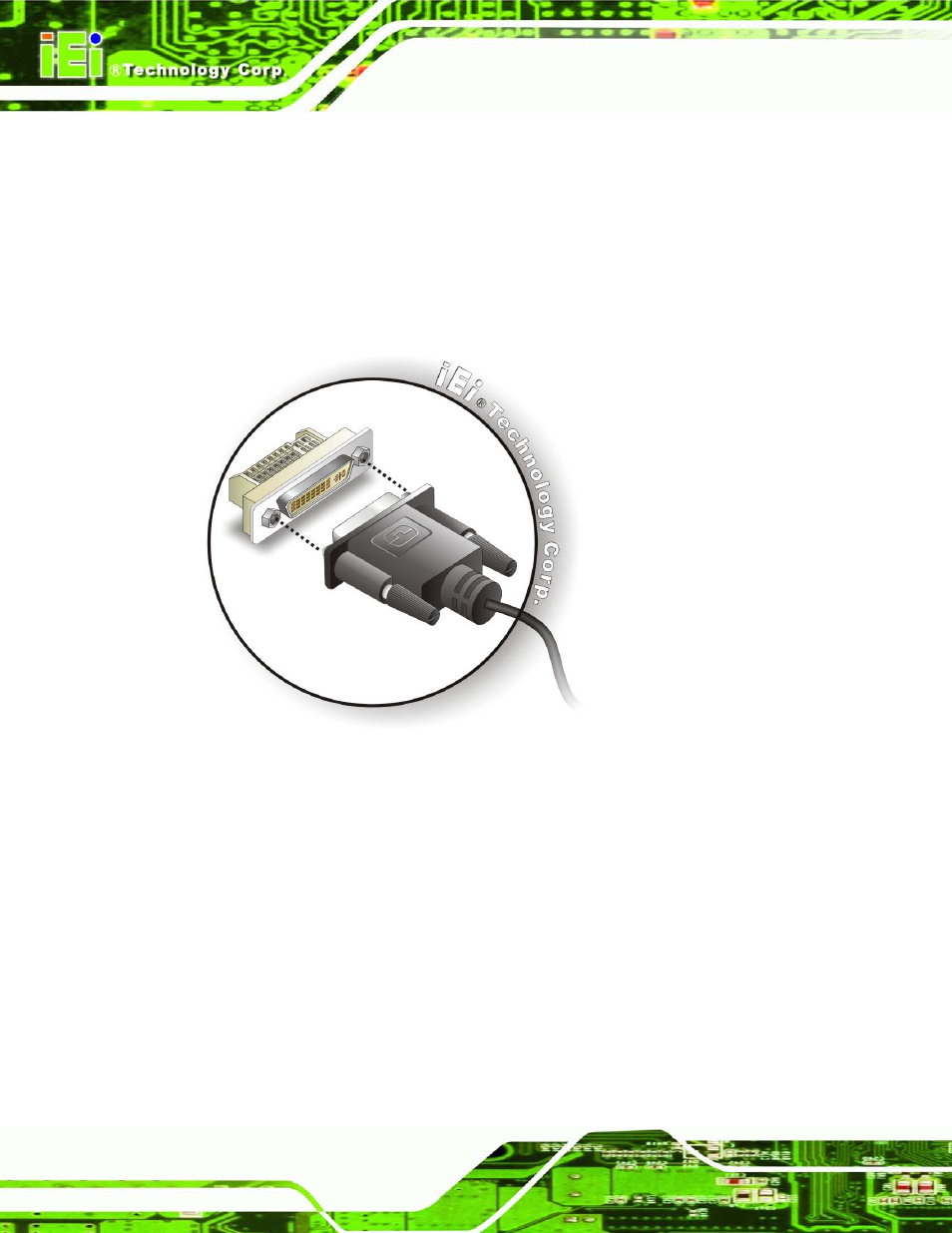

Figure 4-13: DVI Connector

Secure the connector. Secure the DVI-D connector from the digital display device to the

external interface by tightening the two retention screws on either side of the connector.

S te p 0:

4.5.3 HDMI Co n n e c tio n

The HDMI connector transmits a digital signal to compatible HDMI display devices such

as a TV or computer screen. To connect the HDMI cable to the IMB-Q770, follow the steps

below.

S te p 1:

Locate the HDMI connector. The location is shown in a previous section.
