Recorder removal, Recorder removal -32 – ZOLL E Series Monitor Defibrillator Rev D User Manual
Page 142
E Series Service Manual
5-32
9650-1450-01 Rev. D

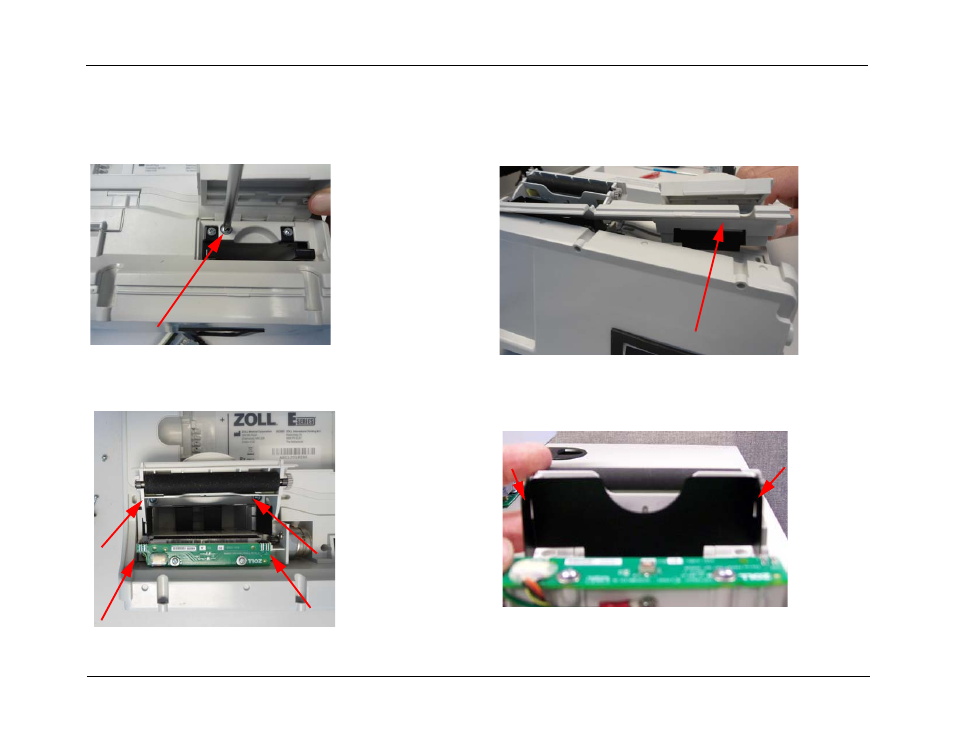

Recorder Removal
1. Lift up on the PCMCIA cover, and remove large screw securing
bezel to housing.
2. Open printer door, then lift bezel straight out.
3. The recorder assembly can be removed by loosening 4 screws
(they do not need to be removed completely from printer frame).
4. Squeeze in the paper lift to release the bosses from
grooves in the roller housing.
