ZOLL E Series Monitor Defibrillator Rev D User Manual
Page 124
E Series Service Manual
5-14
9650-1450-01 Rev. D

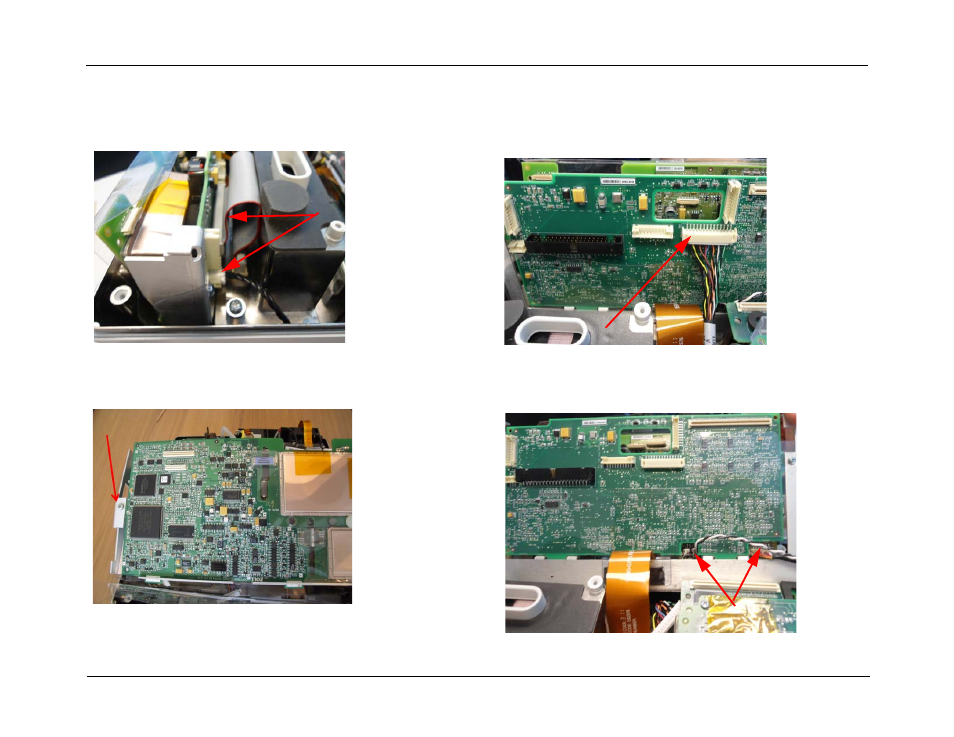

5. Remove gray printer ribbon cable straight out of the board.
Gently lift system board straight up half way from the casing.
Remove the black stranded cable.
6. Remove colored stranded cable by pulling cable downward
from the connector.
7. Remove screw holding system board to the frame.
8. Lift system board further out of frame. Remove colored
stranded cable and the black & white stranded cable.
