ZOLL E Series Monitor Defibrillator Rev D User Manual
Page 140

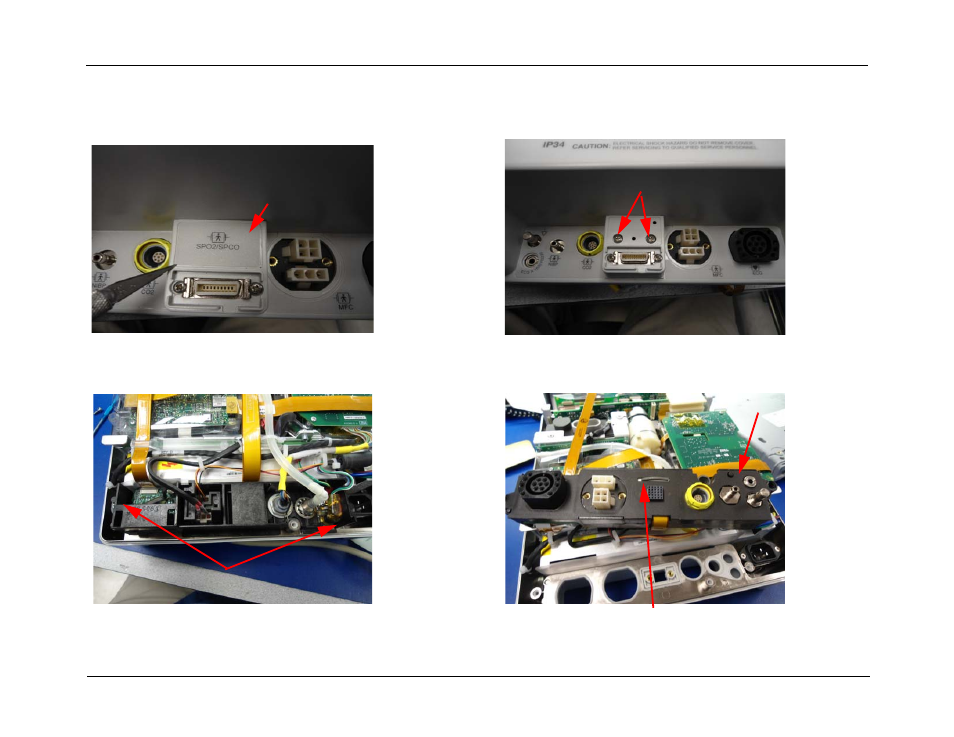

1. (MX-1 Style) Peel back SPO2 label using an exacto knife.
2. Remove 2 screws and gently lift up on connector panel.
3. Remove the 2 screws securing the panel to the housing.
4. Remove rubber gasket (black foam) from connector panel.
ECG and SPO2 connectors can now be removed.
Note:
During reassembly ensure conductive sleeve is in place next to
SPO2 connector.
E Series Service Manual
5-30
9650-1450-01 Rev. D
