NOTES:
3. Apply A11545-00 lubricant onto all O-rings before installation.
2. Torque to 15-20 lbs•in (2.82-3.95 Nm).
1. Torque to 15-20 lbs•in (2.82-3.95 Nm) after valve is down.

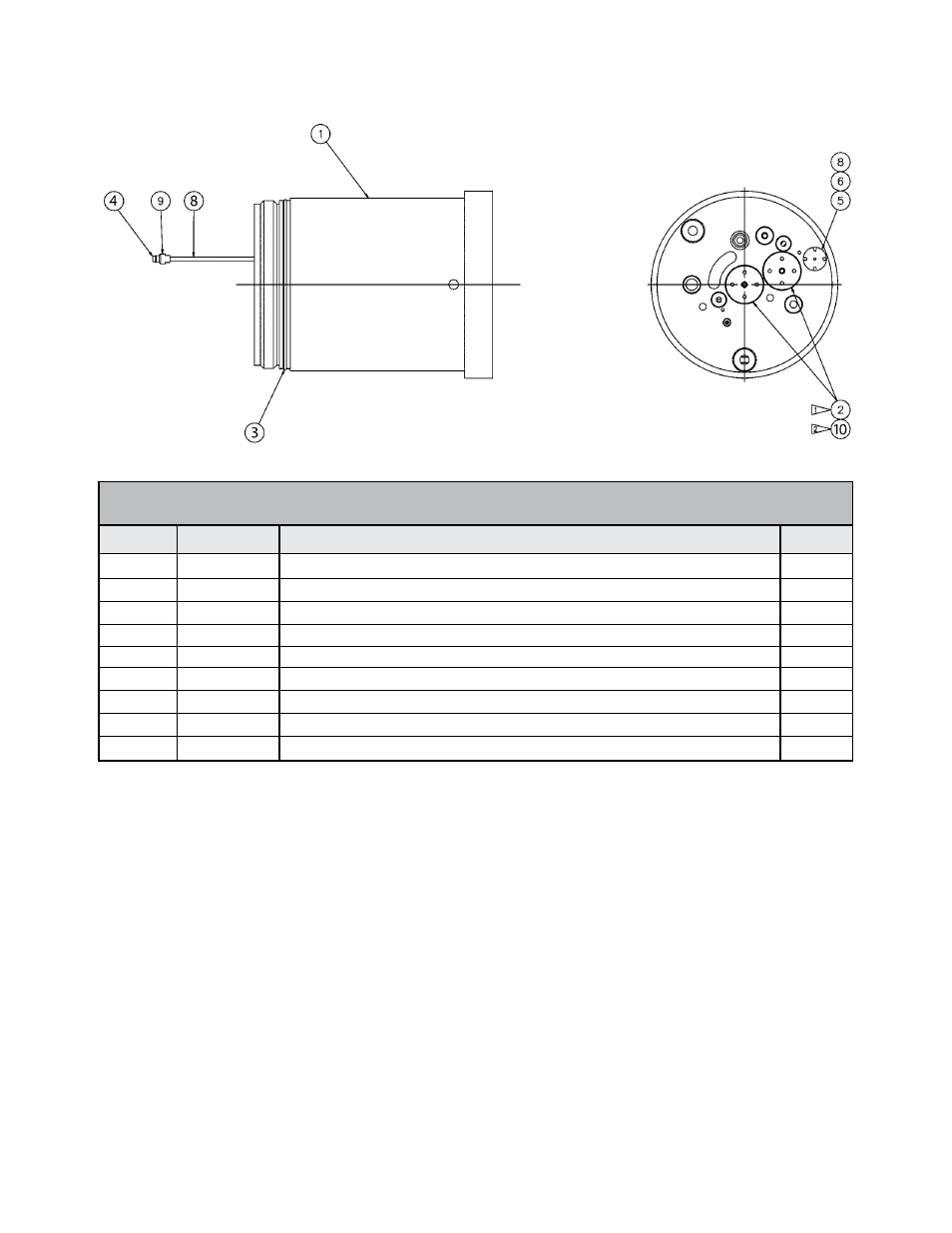

A13581-00 ATOMIZER BODY ASSEMBLY - PARTS LIST
Item # Description Qty Part #
1 A11560-00 ATOMIZER BODY SUB-ASSEMBLY 1
2 78949-00 VALVE ASSEMBLY *SEE NOTE 1 2
3 79001-22 O-RING, SOLVENT PROOF * SEE NOTE 3 1
4 A11305-00 LOWER FERRULE 2
5 79001-06 O-RING SOLVENT PROOF 1
6 A11896-00 MMA SOLVENT FITTING 1
8 A11252-01 TUBING, 3/32” OD X 1/16” ID 13 1/2”
9 A11276-00 FITTING, SOLVENT 1
10 77367-00 VALVE SEAT ASSEMBLY *SEE NOTE 2 2
MMA-570 Direct/Indirect Charge - Parts Identification
