Ransburg, Electrode assembly - parts list – Ransburg MMA-570 Direct_Ind Charge Atomizer A13366 User Manual
Page 103
1
8
“A”

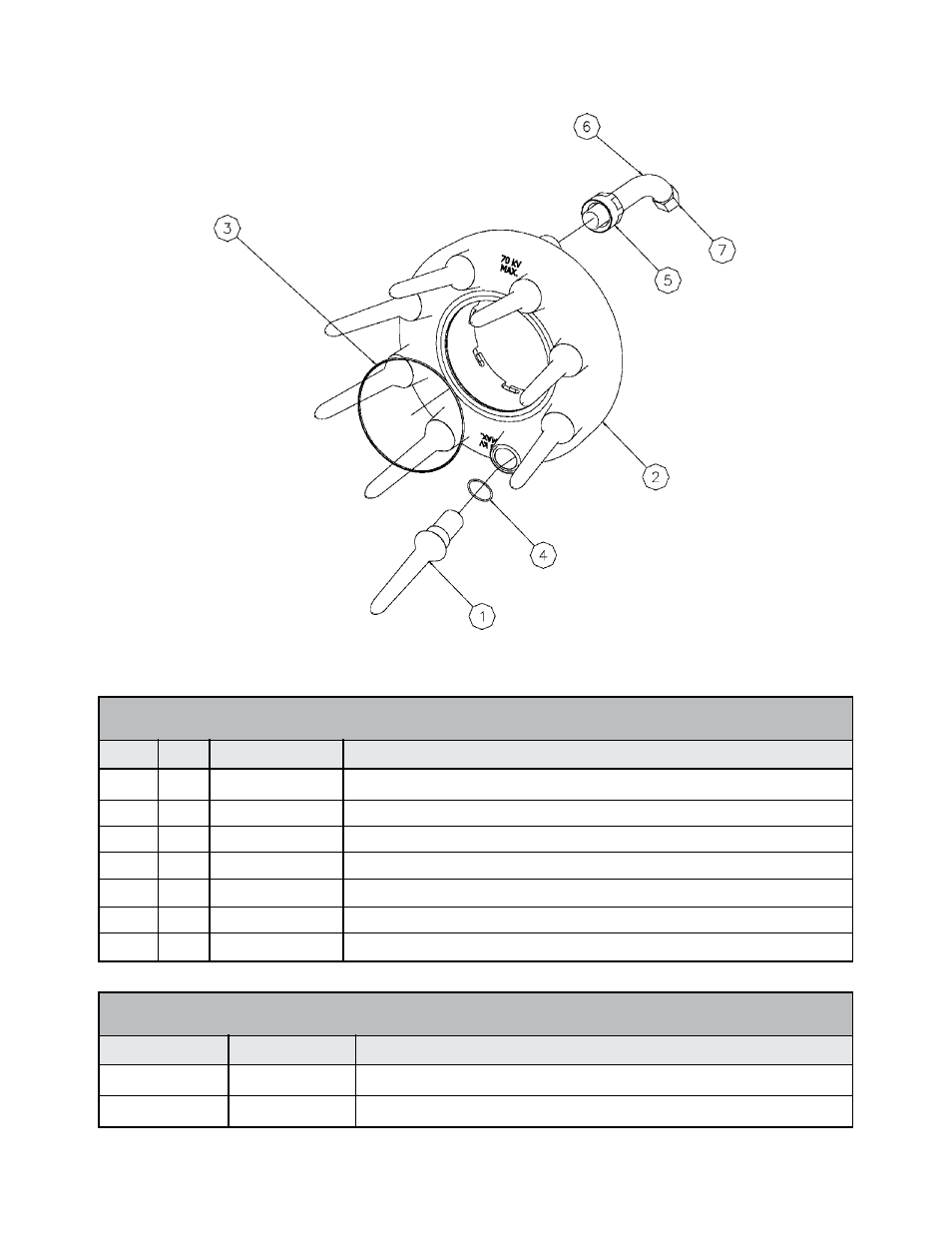

ELECTRODE ASSEMBLY
2
1
A12079-00
HIGH VOLTAGE RING
3
1
LSOR0005-14 O-RING, ENCAPSULATED
4
8
79001-45
O-RING, SOLVENT PROOF
5
1
A11318-00
LOCKNUT, HIGH VOLTAGE TUBE
6
1
A11317-00
BENT TUBE
7
1
78441-00
FERRULE NUT, 3/8” OD
A11536-00
A11343-02
AT SEA LEVEL
A11536-01
A11343-03
AT 5000 FT. ABOVE SEA LEVEL OR HIGHER
A11536-XX HIGH VOLTAGE RING KIT - PARTS LIST
Item #
Description
Part #
Qty
ELECTRODE ASSEMBLY - PARTS LIST
Description
Part #
A
MMA-570 Direct/Indirect Charge - Parts Identification
Ransburg
LN-9279-13
100
